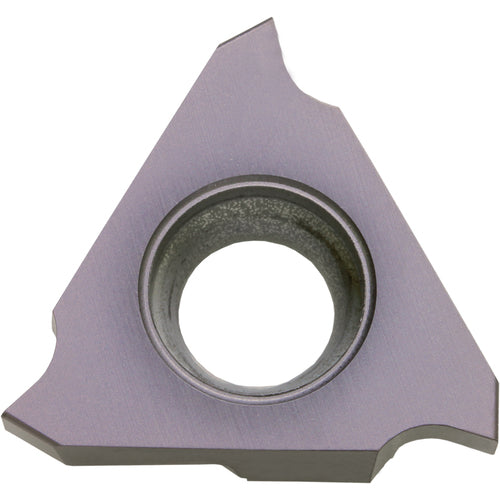

GBA 43R125N PV7040 Grade PVD Cermet, Indexable Grooving Insert
Item #: KY91TJB89034
Brand: Kyocera Precision Tools
Model #: TJB89034
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.1252″ |
| Applicable Material | Steel |
| Corner Radius (RE) | 0.012″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.1575″ |
| Number of Cutting Edges | 3 |
| Insert Thickness (S) | 3/16″ |
| Chip Breaker Type | N |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Insert Style | GBA |
| Fixing Hole Diameter (D1) | 0.2165″ |
| Number of Teeth | 3 |
| Insert Rake Angle (GAN) | Positive |
| Mounting Style | Screw | Clamp |
| Coating | TiC/TiN (MEGACOAT) |
| Series/List # | GBA |
| Grade | PV7040 |
| Coating Process | PVD |
| Cutting Edge Material | Cermet |
| Measurement Type | Inch |
| Application | External Grooving |
