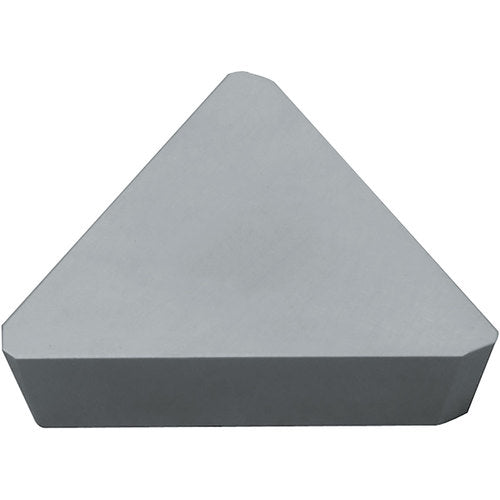

TPC 32P4R TN610 Grade Uncoated Cermet, Indexable Milling Insert
Item #: KY918864112
Brand: Kyocera Precision Tools
Model #: 8864112
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Super-Alloys / Titanium |
| Insert Size | 32 |
| Application | Facing | Shouldering | Slotting |
| Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Corner Chamfer Width (CHW) | 0.026″ |
| Insert Thickness (S) | 1/8″ |
| Cutting Direction (HAND) | Right Hand |
| Wiper Edge Length (BS) | 0.063″ |
| Series/List # | ISOI |
| Insert Included Angle (EPSR) | 60 Degrees |
| Cutting Edge Material | Cermet |
| Grade | TN610 |
| Coating Process | Uncoated |
| Shape | 60° Triangle |
| Number of Cutting Edges | 3 |
| Insert Style | TPC |
| Measurement Type | Inch |
