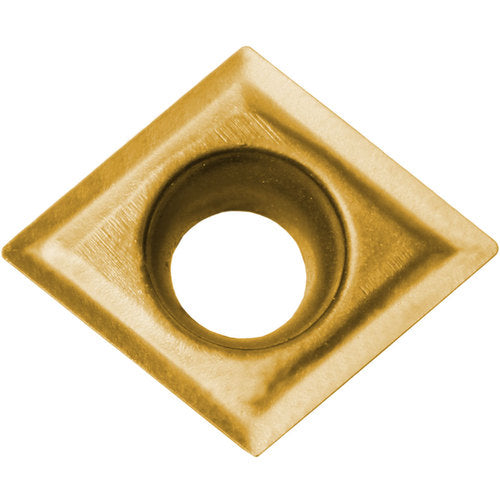

CPGT 21505 PV720, 0.008″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, TiCN (MEGACOAT NANO), 80 Degree Diamond, Turning Indexable Insert
Item #: KY918863002
Brand: Kyocera Precision Tools
Model #: 8863002
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Boring | Internal Facing |
| Fixing Hole Diameter (D1) | 0.1102″ |
| Insert Style | CPGT |
| Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.008″ |
| Number of Cutting Edges | 2 |
| Insert Size | 21505 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees |
| Shape | 80° Diamond |
| Cutting Edge Material | Cermet |
| Series/List # | ISOI |
| Coating | TiCN (MEGACOAT NANO) |
| Model No | 8863002 |
| Grade | PV720 |
