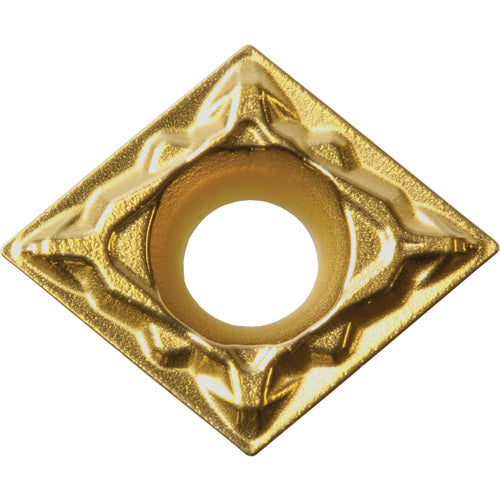

CPMT 321 PP PV7025, 1/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, TiCN (MEGACOAT), Diamond, Turning Indexable Insert
Item #: KY918841370
Brand: Kyocera Precision Tools
Model #: TJM02272
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN (MEGACOAT) |
| Application | Boring | Internal Facing |
| Grade | PV7025 |
| Insert Style | CPMT |
| Fixing Hole Diameter (D1) | 0.1732″ |
| Corner Radius (RE) | 1/64″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 321 |
| Number of Cutting Edges | 2 |
| Insert Thickness (S) | 1/8″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | PP |
| Cutting Edge Material | Cermet |
| Shape | Diamond |
