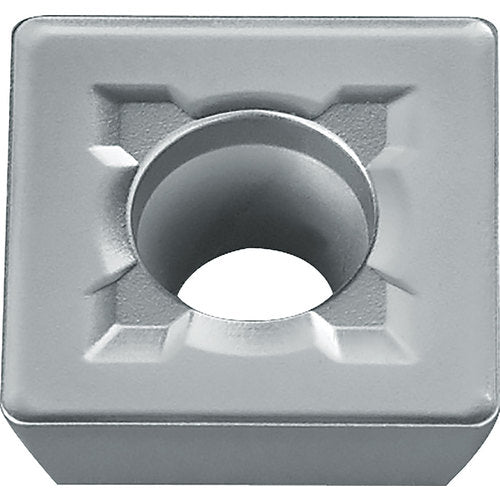

SDMT 080308EK KW10 Grade Uncoated Carbide, Indexable Milling Insert
Item #: KY90TWE04921
Brand: Kyocera Precision Tools
Model #: TWE04921
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Insert Size | 80308 |
| Application | Back Side Milling | T-Slotting |
| Clearance Angle Major (AN) | 15 Degrees |
| Corner Radius (RE) | 1/32″ |
| Cutting Direction (HAND) | Neutral |
| Insert Width (W1) | 0.315″ |
| Chip Breaker Type | E-K |
| Inscribed Circle Diameter (IC) | 0.315″ |
| Series/List # | METS |
| Insert Thickness (S) | 1/8″ |
| Hole Diameter | 0.1339″ |
| Insert Included Angle (EPSR) | 90 Degrees |
| Cutting Edge Material | Carbide |
| Coating | WC/Co |
| Coating Process | Uncoated |
| Grade | KW10 |
| Number of Cutting Edges | 4 |
| Shape | Square |
| Measurement Type | Inch |
| Insert Style | SDMT |
