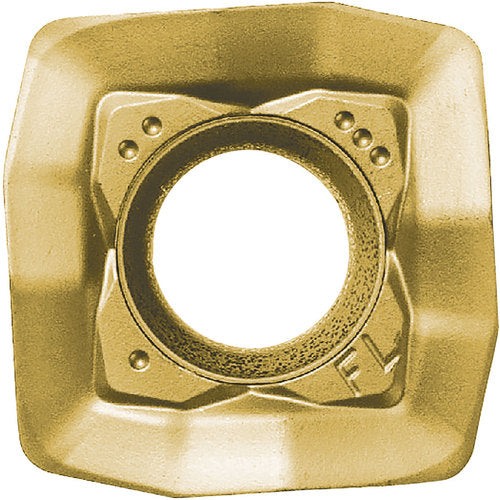

SOMT 140514ERFL CA6535 Grade CVD Carbide, Indexable Milling Insert
Item #: KY90TMA05620
Brand: Kyocera Precision Tools
Model #: TMA05620
| Product Specifications | |
|---|---|
| Applicable Material | Stainless Steel | Super-Alloys / Titanium |
| Insert Style | SOMT |
| Application | Facing | Helical Milling | High Feed | Plunging | Pocketing | Ramping | Shouldering | Slotting |
| Insert Size | 140514 |
| Corner Radius (RE) | 0.055″ |
| Clearance Angle Major (AN) | 16 Degrees |
| Insert Width (W1) | 0.5736″ |
| Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.574″ |
| Chip Breaker Type | ER-FL |
| Insert Thickness (S) | 7/32″ |
| Series/List # | MFHR |
| Wiper Edge Length (BS) | 0.1221″ |
| Hole Diameter | 0.2284″ |
| Insert Included Angle (EPSR) | 90 Degrees |
| Cutting Edge Material | Carbide |
| Coating | TiCl2O3/TiN |
| Coating Process | CVD |
| Grade | CA6535 |
| Number of Cutting Edges | 4 |
| Shape | Square |
| Measurement Type | Inch |
