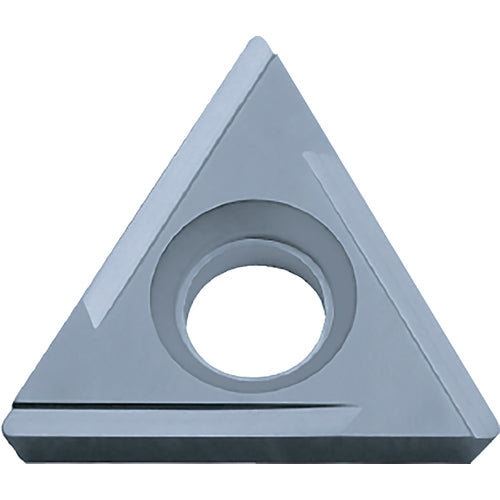

TPGH 321 H PR1725, 1/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, MEGACOAT NANO PLUS, 60 Degree Triangle, Turning Indexable Insert
Item #: KY90TLM00317
Brand: Kyocera Precision Tools
Model #: TLM00317
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing |
| Fixing Hole Diameter (D1) | 0.1772″ |
| Insert Style | TPGH |
| Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/64″ |
| Number of Cutting Edges | 3 |
| Insert Size | 321 |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/8″ |
| Chip Breaker Type | H |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 60° Triangle |
| Coating | MEGACOAT NANO PLUS |
| Series/List # | ISOI |
| Grade | PR1725 |
| Model No | 8863566 |
