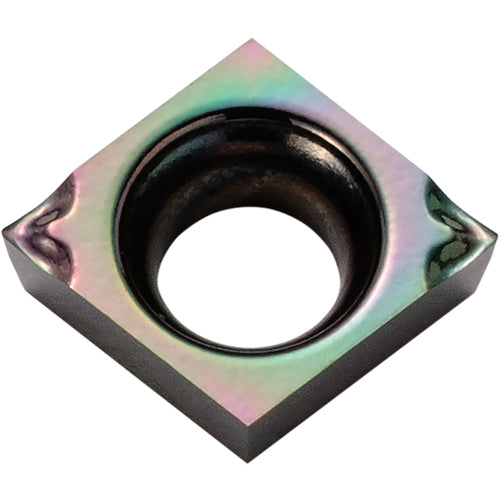

CCGT 110905 CF PDL025, 0.008″ Corner Radius, 0.055″ Thick, 0.138″ Inscribed Circle, C, 80 Degree Diamond, Turning Indexable Insert
Item #: KY90TLE01381
Brand: Kyocera Precision Tools
Model #: TLE01381
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Tool Type | Turning Insert |
| Application | Boring | External Turning | Facing | Internal Facing | Sub-Spindle |
| Fixing Hole Diameter (D1) | 0.0748″ |
| Insert Style | CCGT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.008″ |
| Number of Cutting Edges | 2 |
| Insert Size | 110905 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.055″ |
| Chip Breaker Type | CF |
| Inscribed Circle Diameter (IC) | 0.138″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 80° Diamond |
| Coating | C |
| Series/List # | ISOI |
| Grade | PDL025 |
| Model No | 8845218 |
