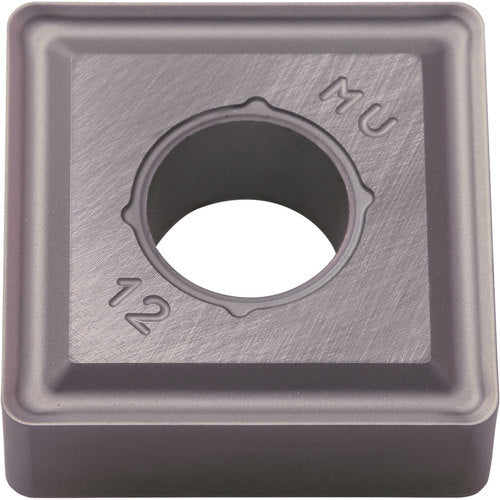

SNMG 643 MU PR1535, 3/64″ Corner Radius, 1/4″ Thick, 3/4″ Inscribed Circle, MEGACOAT NANO, 90 Degree Square, Turning Indexable Insert
Item #: KY90TLC40114
Brand: Kyocera Precision Tools
Model #: TLC40114
| Product Specifications | |
|---|---|
| Applicable Material | Stainless Steel | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Boring | Chamfering | External Turning | Facing |
| Fixing Hole Diameter (D1) | 0.3126″ |
| Insert Style | SNMG |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 3/64″ |
| Number of Cutting Edges | 8 |
| Insert Size | 643 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ |
| Chip Breaker Type | MU |
| Inscribed Circle Diameter (IC) | 3/4″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 90 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | Square |
| Coating | MEGACOAT NANO |
| Series/List # | ISOI |
| Grade | PR1535 |
| Model No | 8866510 |
