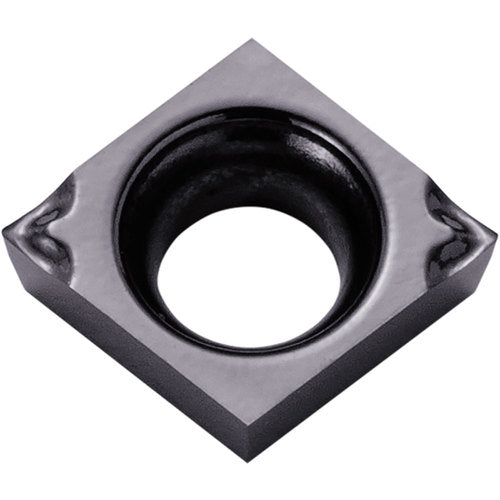

CCGT 141105 CF PR1535, 0.008″ Corner Radius, 0.071″ Thick, 0.169″ Inscribed Circle, MEGACOAT NANO, 80 Degree Diamond, Turning Indexable Insert
Item #: KY90TLC01386
Brand: Kyocera Precision Tools
Model #: TLC01386
| Product Specifications | |
|---|---|
| Applicable Material | Stainless Steel | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Boring | External Turning | Facing | Internal Facing | Sub-Spindle |
| Fixing Hole Diameter (D1) | 0.0906″ |
| Insert Style | CCGT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.008″ |
| Number of Cutting Edges | 2 |
| Insert Size | 141105 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.071″ |
| Chip Breaker Type | CF |
| Inscribed Circle Diameter (IC) | 0.169″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 80° Diamond |
| Coating | MEGACOAT NANO |
| Series/List # | ISOI |
| Grade | PR1535 |
| Model No | 8846111 |
