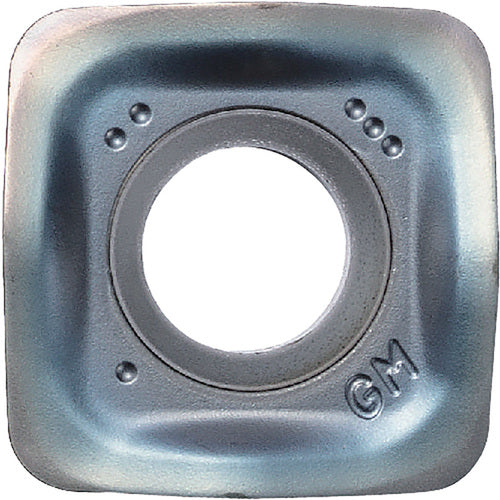

SOMT 100420ERGM CA6535
Item #: KY908838816
Brand: Kyocera Precision Tools
Model #: TMA05607
| Product Specifications | |
|---|---|
| Applicable Material | Stainless Steel | Super-Alloys / Titanium |
| Insert Size | 100420 |
| Application | High Feed | Facing | Shouldering | Slotting | Pocketing | Ramping | Helical Milling | Plunging |
| Clearance Angle Major (AN) | 16 Degrees |
| Corner Radius (RE) | 5/64″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Width (W1) | 0.4055″ |
| Chip Breaker Type | ER-GM |
| Inscribed Circle Diameter (IC) | 0.4055″ |
| Series/List # | MFH-Raptor |
| Insert Thickness (S) | 0.1803″ |
| Hole Diameter | 0.1811″ |
| Insert Included Angle (EPSR) | 90 Degrees |
| Cutting Edge Material | Carbide |
| Coating | TiCNULLl2O3/TiN |
| Tool Type | Medium-Roughing |
| Grade | CA6535 |
| Coating Process | CVD |
| Shape | Square |
| Number of Cutting Edges | 4 |
| Insert Style | SOMT |
| Measurement Type | Inch |
