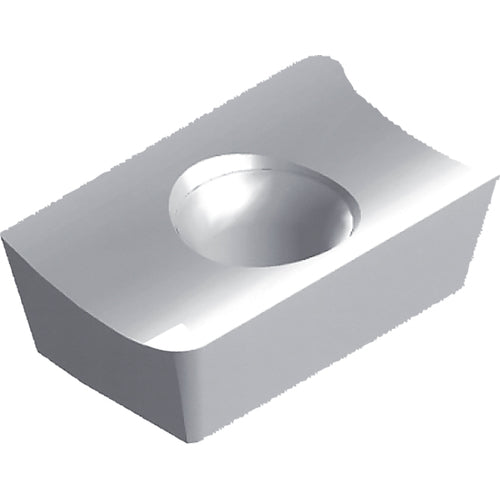

APET1604PDFR KW10
Item #: KY908832916
Brand: Kyocera Precision Tools
Model #: 8832916
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Insert Size | 1604 |
| Application | Facing | Shouldering | Slotting | Chamfering | Countersinking |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Length (INSL) | 0.6299″ |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0394″ |
| Chip Breaker Type | PDFR |
| Insert Width (W1) | 3/8″ |
| Series/List # | EM-AL, FM-AL, CM-AL |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Hole Diameter | 0.1575″ |
| Insert Thickness (S) | 0.188″ |
| Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 85 Degrees |
| Tool Type | Finishing-Medium |
| Coating | WC/Co |
| Coating Process | Uncoated |
| Grade | KW10 |
| Number of Cutting Edges | 2 |
| Shape | Parallelogram |
| Measurement Type | Inch |
| Insert Style | APET |
