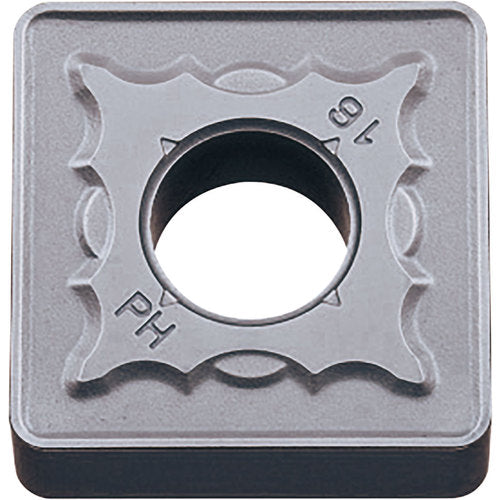

SNMG 866 PH PR1535, 3/32″ Corner Radius, 3/8″ Thick, 1″ Inscribed Circle, MEGACOAT NANO, 90 Degree Square, Turning Indexable Insert
Item #: KY908002800
Brand: Kyocera Precision Tools
Model #: 8002800
| Product Specifications | |
|---|---|
| Applicable Material | Stainless Steel | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Boring | Chamfering | External Turning | Facing |
| Fixing Hole Diameter (D1) | 0.3591″ |
| Insert Style | SNMG |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 3/32″ |
| Number of Cutting Edges | 8 |
| Insert Size | 866 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/8″ |
| Chip Breaker Type | PH |
| Inscribed Circle Diameter (IC) | 1″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 90 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | Square |
| Coating | MEGACOAT NANO |
| Series/List # | ISOI |
| Grade | PR1535 |
| Model No | 8002800 |
