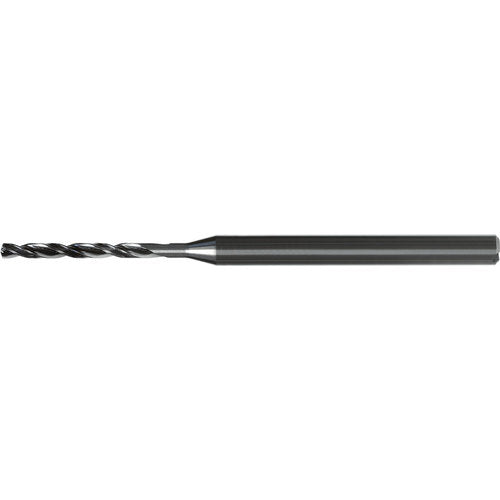

4 mm Dia. × 4 mm Shank × 42.9 mm Flute Length × 76 mm OAL, 8xD, 140°, AlTiN Nano, 2 Flute, Coolant Thru, Straight / Cylindrical Solid Carbide Drill
Item #: KY878525557
Brand: KYOCERA SGS Precision Tools
Model #: 06030
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 4 mm |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1575″ |
| Length Below Shank | 46.33 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4 mm |
| Flute Type | Spiral |
| Length Group | 8xD |
| Point Shape | 6 Facet |
| Coating | TiAlN Nano |
| Measurement Type | Metric |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials |
| Series/List # | 814 HYDROS MINI |
| Application | Deep Hole Drilling |
| Usable Length (LU) | 32 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Length Chip Flute (LCF) | 42.9 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 76 mm |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Shank Type | Cylindrical |
| Cutting Direction (HAND) | Right Hand |
