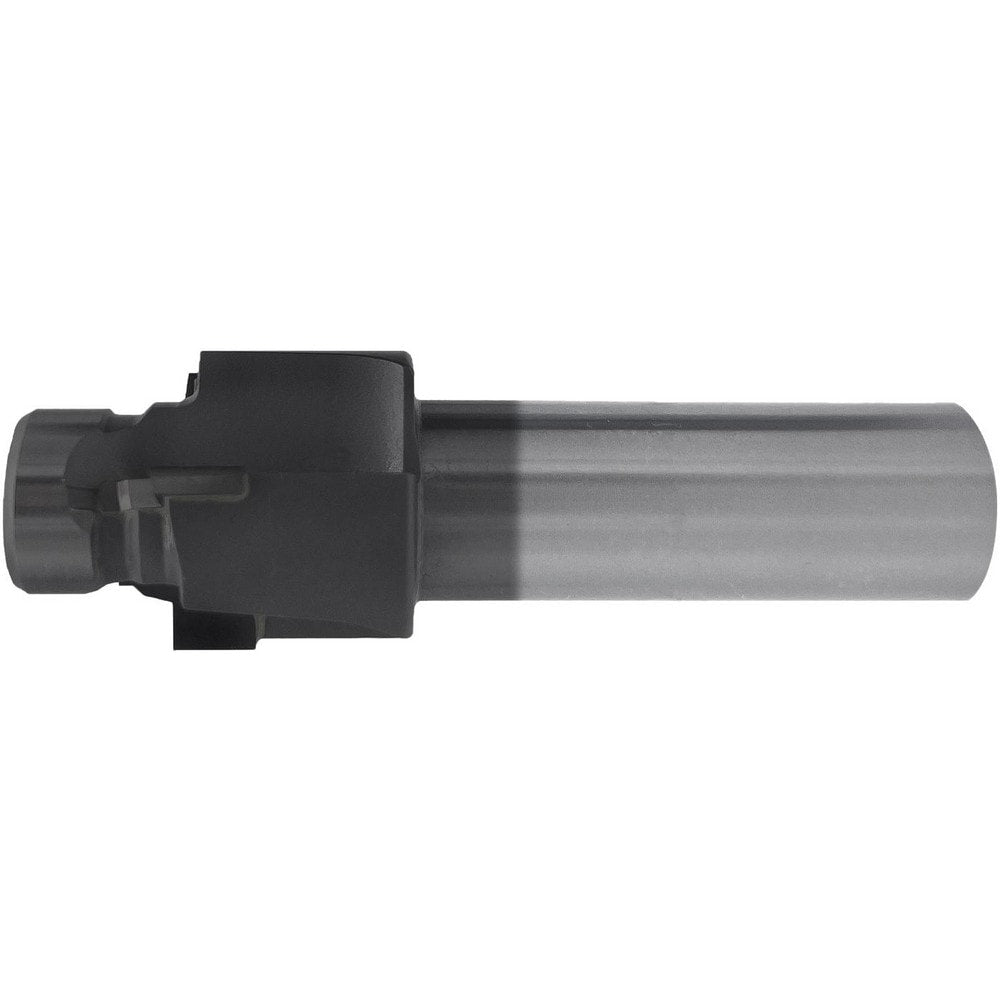

Brand: Scientific Cutting Tools / Part #: SAEJ1926-20SA
Item #: 99254070
Brand: Scientific Cutting Tools
Model #: SAEJ1926-20SA
Product Specifications
| Spotface Diameter (Decimal Inch) | 2.2900 |
| Tube Outside Diameter Compatibility (Inch) | 1-1/4 |
| Pilot Type | Plain |
| Port Thread Size (Decimal Inch) | 1-5/8-12 |
| Tool Material | Carbide-Tipped |
| Tube Dash Number | 20.000 |
| Minimum Pilot Diameter (Decimal Inch) | 1.5370 |
| Pilot Length | 0.6100 |
| Overall Length (Decimal Inch) | 4.2000 |
| Number Of Flutes | 3 |
| Standards | SAEJ1926; MS16142 |
| Shank Type | Straight |
| Identification Groove | No |
| Series | Standard |
| Seal Angle | 15 |
| Thread Type | UN |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 1 |
| Shank Length (Decimal Inch) | 2.2500 |
| Maximum Pilot Diameter (Decimal Inch) | 1.7155 |
| Head Length (Decimal Inch) | 1.9500 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | AlTiN |
