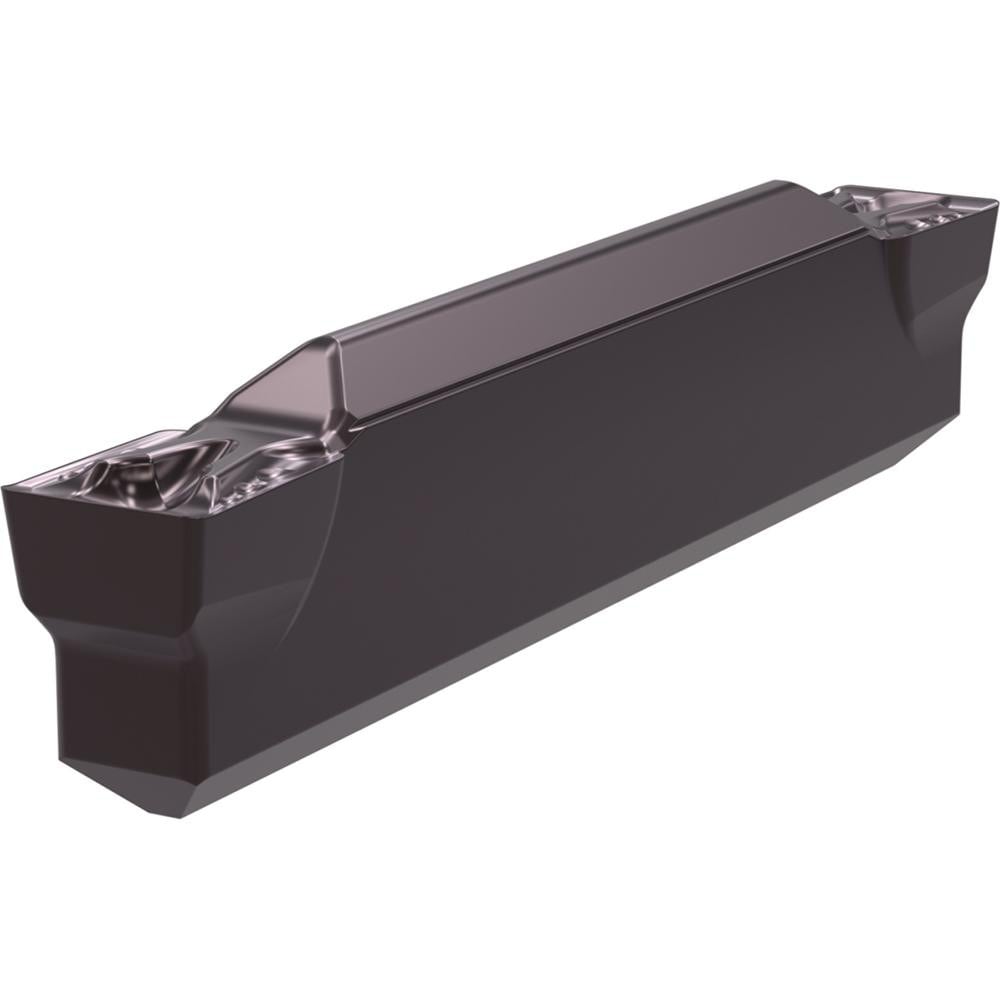

Brand: Widia / Part #: 4118590

Brand: Widia / Part #: 4118590


Item #: 12996484
Brand: Widia
Model #: 4118590

Product Specifications

Insert Style WMT
Insert Size Code 5
Insert Size 5
Insert Material Carbide
Manufacturer Grade WU25PT
Cutting Width (Decimal Inch) 0.1874
Cutting Width (Inch) 3/16
Maximum Depth of Cut (Decimal Inch) 1.0000
Insert Holding Method Clamp
Insert Hand Neutral
Corner Radius (Decimal Inch) 0.0102
Lead Angle 5.000
Rake Positive
Multi-use Tool No
Cutting Tool Application Grooving
Series WMT
Coating Process PVD
Overall Length (Decimal Inch) 1.1270
Primary Workpiece Material Super-alloys & Titanium
Primary Workpiece Material Code S
Secondary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel
Secondary Workpiece Material Code P; H; K; M; N
Ansi Code WMTS188I5P03PT
Iso Code WMTS188I5P03PT
Relief Angle 5
Maximum Corner Radius (Decimal Inch) 0.0102
Manufacturers Catalog Number WMTS188I5P03PT
Overall Width (Inch) 9/64
Insert Thickness (Decimal Inch) 0.2420
Minimum Groove Width (mm) 4.76
Type WMT Groove Cutoff Turn Insert
Maximum Groove Width (mm) 4.76
Minimum Insert Width (mm) 3.56
Chip Breaker PT
Insert Seat Size 5
Style WMT Groove Cutoff Turn Insert
Insert Height (Decimal Inch) 0.2420
Full Radius No
Gage Diameter (Decimal Inch) 0.1250
Coating Classification PVD
Hole Diameter (Decimal Inch) 0.0000
Gage Diameter (Inch) 1/8
Overall Width (Decimal Inch - 4 Decimals) 0.1400
Coating/Finish TiAIN
Number Of Cutting Edges 2
Single Or Double End Double
Groove Width (mm) 4.76
For Use With Grooving
$28.56
