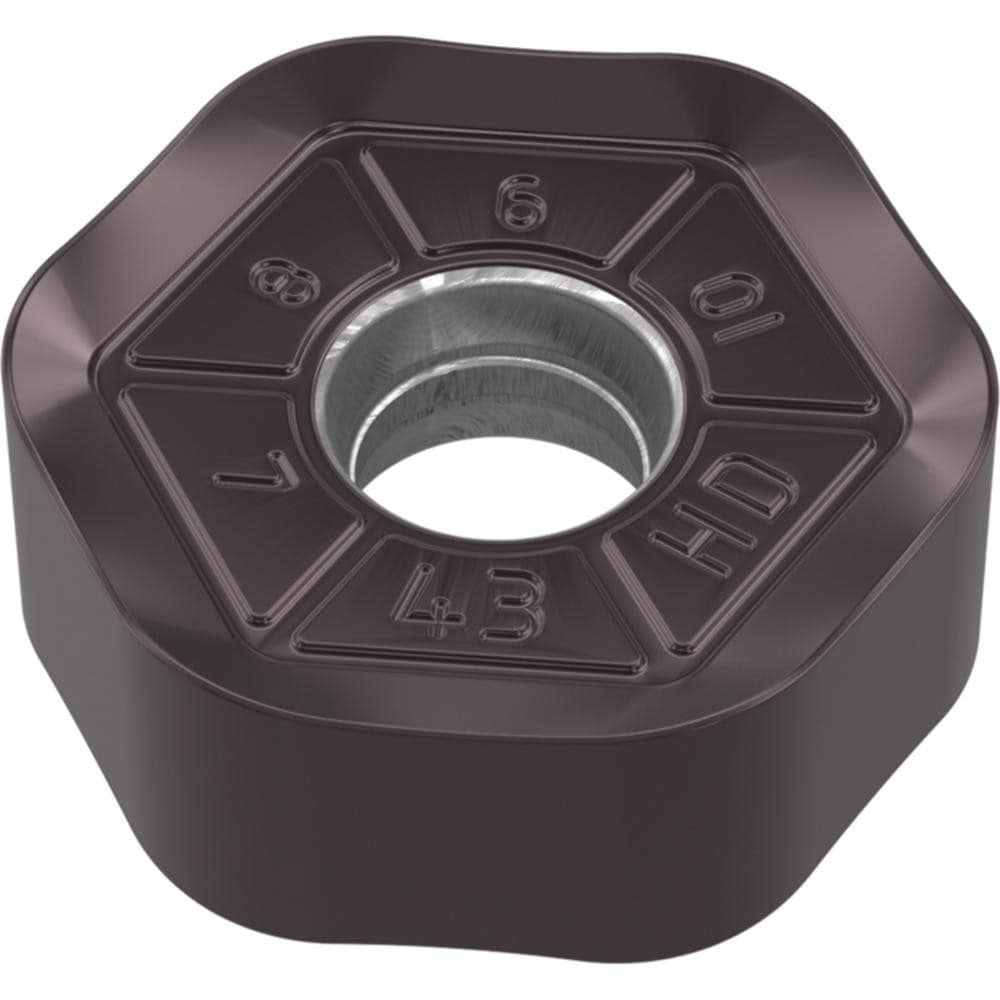

Brand: Widia / Part #: 5895377

Brand: Widia / Part #: 5895377


Item #: 96606850
Brand: Widia
Model #: 5895377

Product Specifications

Insert Style HNPJ
Insert Size Code 0905
Insert Size 53
Insert Material Carbide
Width (Inch) 5/8
Manufacturer Grade WP35CM
Length (Inch) 5/8
Inscribed Circle (Inch) 5/8
Inscribed Circle (Decimal Inch) 0.6250
Corner Radius (Decimal Inch) 0.0469
Corner Radius (Inch) 3/64
Insert Hand Neutral
Relief Angle 0.000
Series M1200
Coating Process CVD
Hole Diameter (Mm) ( - 0 Decimals) 5.0000
Hole Diameter (Decimal Inch) 0.1969
Maximum Depth of Cut (Decimal Inch) 0.3383
Number Of Cutting Edges 12
Insert Shape Hexagon
Rake Negative
Primary Workpiece Material Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code P; K; M
Secondary Workpiece Material Super-alloys & Titanium
Secondary Workpiece Material Code S
Ansi Code HNPJ535ANSNHD
Iso Code HNPJ0905ANSNHD
Manufacturers Catalog Number HNPJ535ANSNHD
Cutter Series Compatibility M1200 HN0905 IN
Chip Breaker HD
Cutting Direction Neutral
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Hexagon
Insert Holding Method Screw
Coating Classification CVD
Single or Double Sided Insert Double
Coating/Finish TiCN; TiN; Al2O3
Included Angle Degree 120
Width (Decimal Inch - 4 Decimals) 0.6250
Thickness (Decimal Inch - 4 Decimals) 0.2151
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.6250
$19.16
