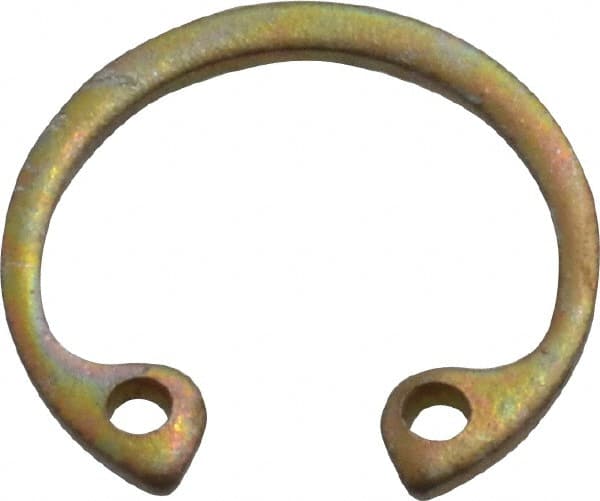

Rotor Clip - 1-3/8" Bore Diam, Spring Steel Internal Snap Retaining Ring
Item #: 99615890
Brand: Rotor Clip
Model #: HO-137ST ZD-B
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Spring Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1-3/8 |
| Bore Diameter (Decimal Inch) | 1.3750 |
| Groove Diameter (Decimal Inch) | 1.4610 |
| Groove Width (Decimal Inch) | 0.0560 |
| Free Outside Diameter (Decimal Inch) | 1.5260 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (Decimal Inch) | 0.0500 |
| Material Grade | 1060-1090 |
| Finish/Coating | Zinc Yellow Dichromate |
| Groove Depth (Decimal Inch) | 0.0430 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Free Diameter (mm) | 38.76 |
