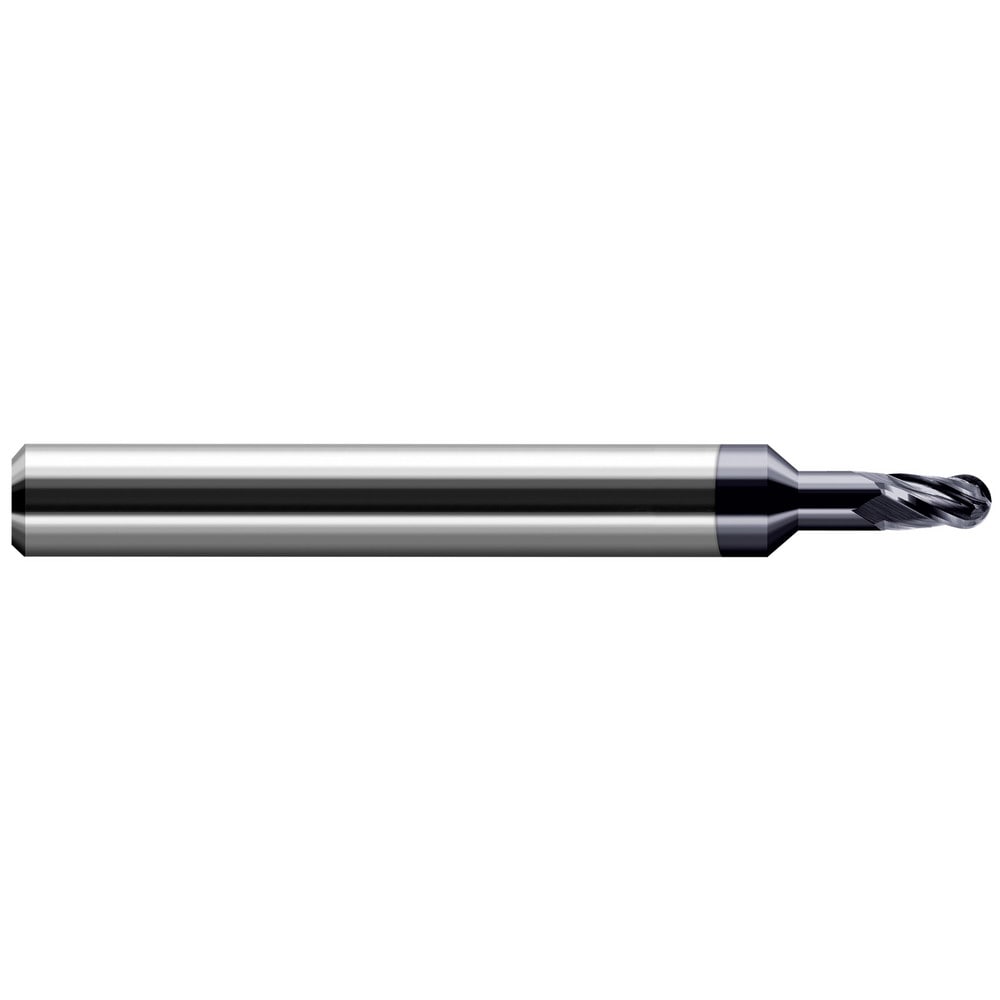

Brand: Harvey Tool / Part #: 755478-C3
Item #: 82842626
Brand: Harvey Tool
Model #: 755478-C3
Product Specifications
| Mill Diameter (Inch) | 5/64 |
| Mill Diameter (Decimal Inch) | 0.0780 |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Chipbreaker | No |
| Number Of Flutes | 4 |
| End Type | Ball |
| Extended Reach | Yes |
| Helix Angle | 37 |
| Undercutting | No |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Reach Length (Inch) | 15/64 |
| Reach Length (Decimal Inch) | 0.2340 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Series | Variable Helix End Mills for Medium Alloy Steels - Ball - Long Reach, Stub Flute |
| Flute Type | Spiral |
| Centercutting | Center Cutting |
| Shank Type | Round |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1170 |
