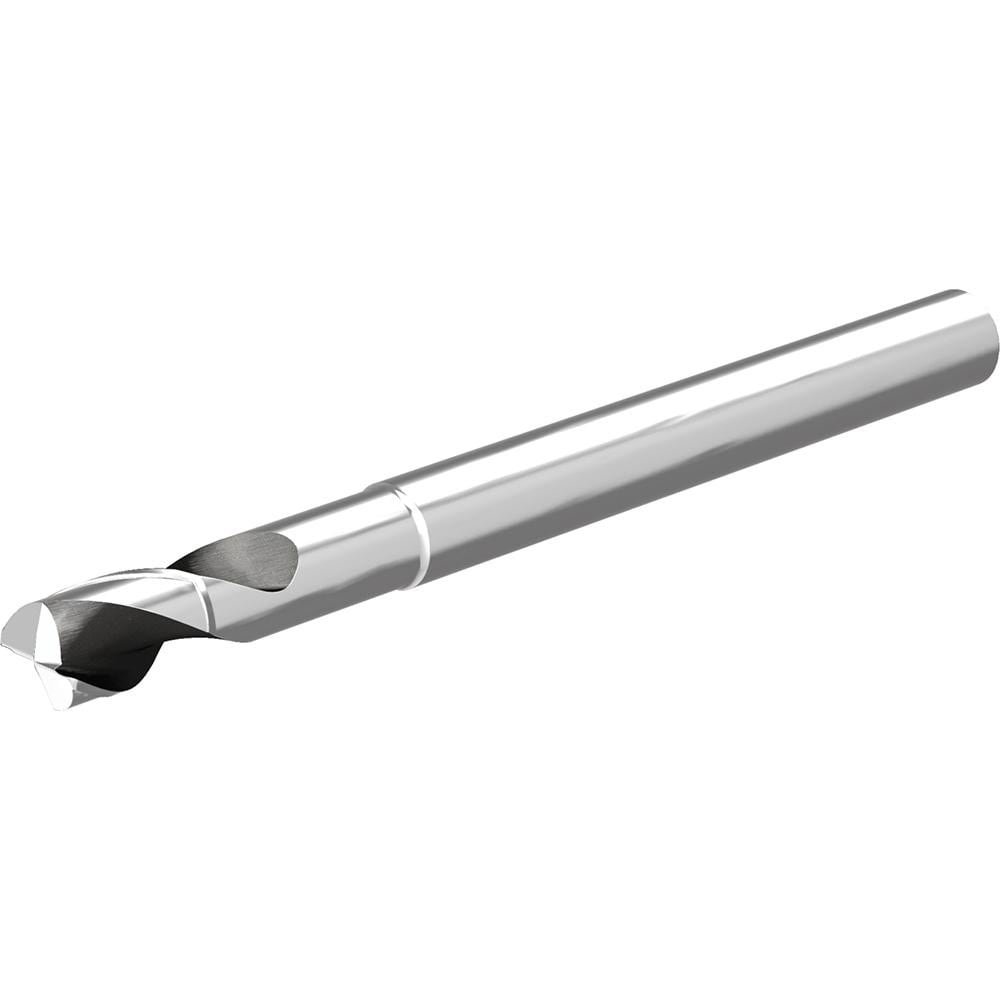

Brand: Widia / Part #: 6859674
Item #: 98108541
Brand: Widia
Model #: 6859674
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Coating/Finish | Uncoated |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 2 |
| Single Or Double End | Single |
| Overall Length (Inch) | 5 |
| Length of Cut (Inch) | 1 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Flute Direction | Right Hand |
| Helix Angle | 33 |
| Overall Length (Decimal Inch) | 5.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | Yes |
| Shank Type | Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Neck Diameter (Decimal Inch) | 0.7050 |
| Reach Length (Decimal Inch) | 3.0000 |
| Reach Length (Inch) | 3 |
| Minimum Helix Angle | 33 |
| Maximum Helix Angle | 33 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Series | 2AL9 |
| Coating Classification | Uncoated |
| Helix Style | Medium |
