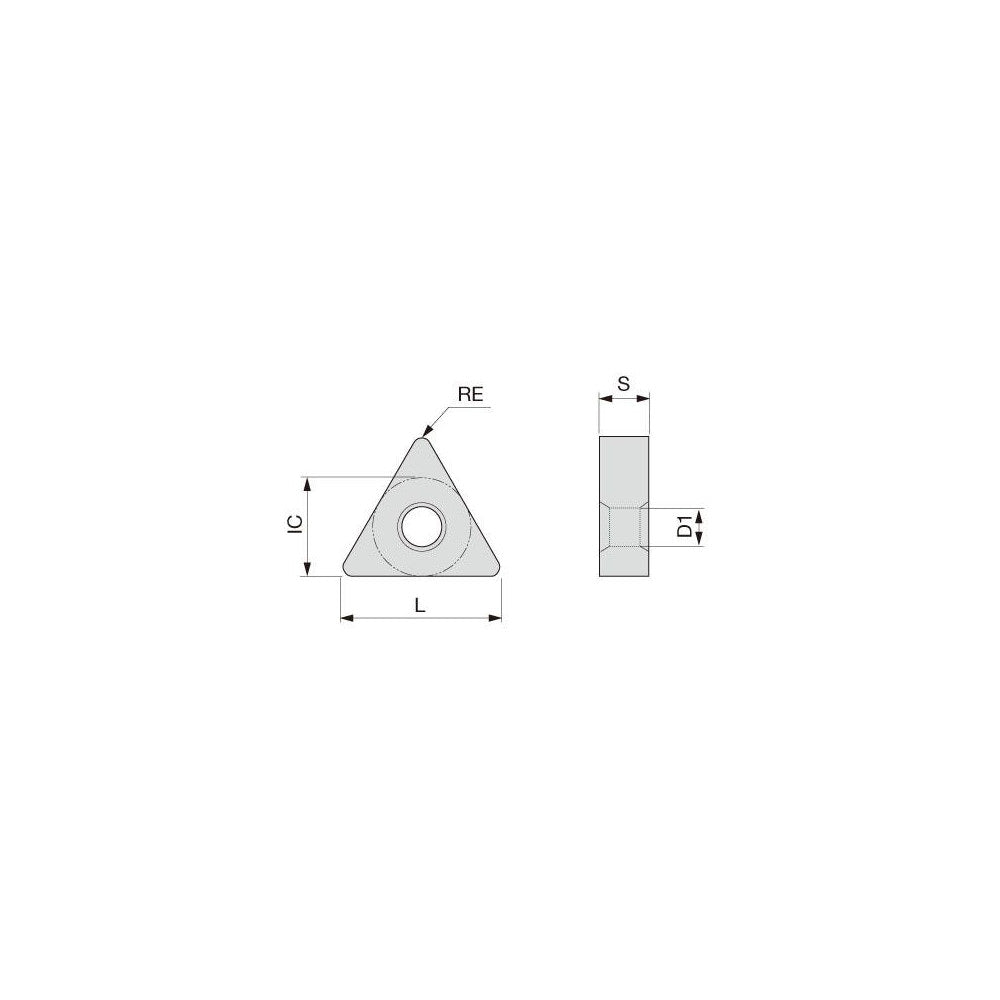

Turning Insert: TNMG432SA KS20, Carbide
Item #: 20870150
Brand: Tungaloy
Model #: 6808621
Product Specifications
| ANSI Insert Code | TNMG432 |
| ISO Insert Code | TNMG220408 |
| Relief Angle | 0 |
| Insert Style | TNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60 |
| Manufacturer Grade | KS20 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | TNMG-SA |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Medium Machining; Finishing |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear-Resistance; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.8660 |
| Primary Workpiece Material | Cast Iron; Superalloys & Titanium |
| Primary Workpiece Material Code | S; H; K |
| Iso Code | TNMG220408-SA KS20 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6808621 |
| Material Grade | S20; K20; N20 |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | SA |
| Rake Angle | -18 |
| Cutting Edge Style | Honed |
| Industry Standard Number | TNMG 432 SA |
| Width (Decimal Inch - 4 Decimals) | 0.8660 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 432 |
| ISO Size Code | 220408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
