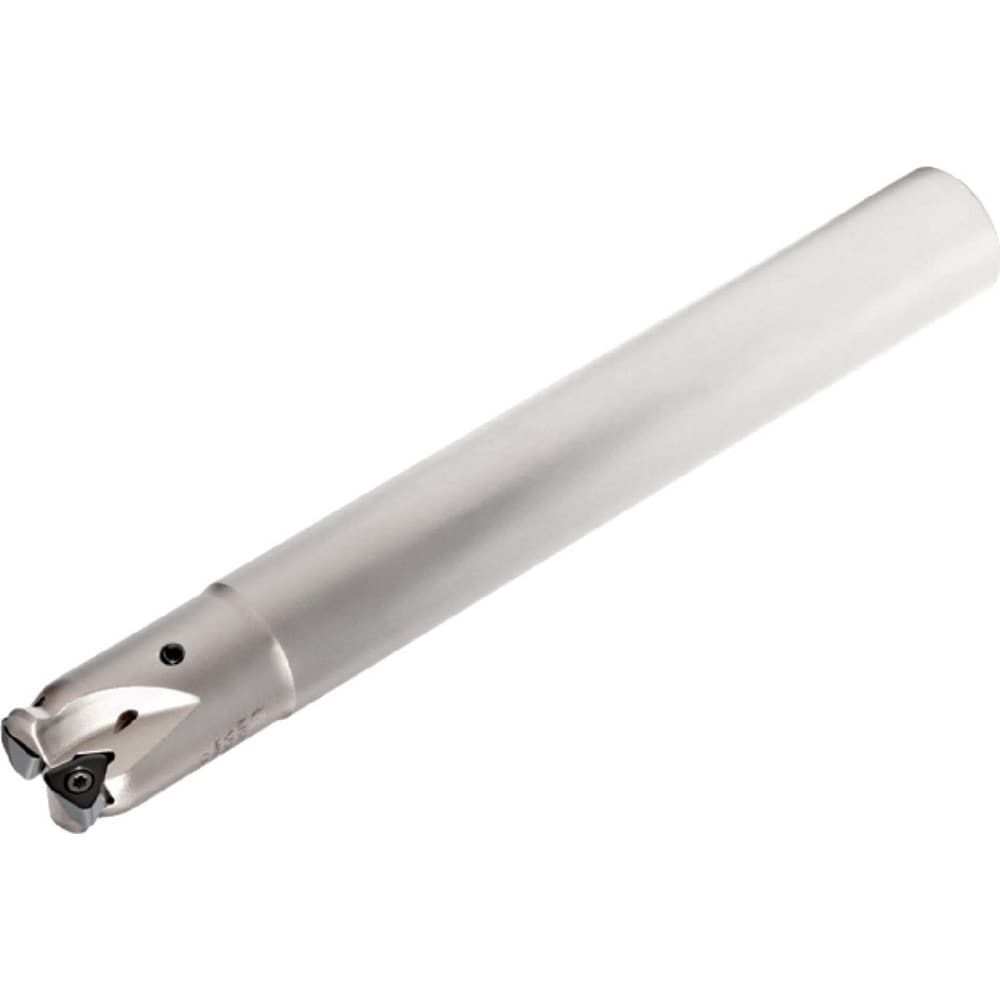

Brand: Widia / Part #: 4047656
Item #: 94975232
Brand: Widia
Model #: 4047656
Product Specifications
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Minimum Cutting Diameter (Decimal Inch) | 0.4600 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0490 |
| Toolholder Style | M370 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Maximum Ramping Angle | 2.05 |
| Compatible Insert Style | WOEJ |
| Compatible Insert Size Code | 080412 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 6.0000 |
| Series | M370 |
| Flute Type | Straight |
| Maximum RPM | 45500.000 |
| Head Length (Decimal Inch) | 1.5000 |
| Functional Length (Decimal Inch) | 1.5000 |
| Projection (Decimal Inch) | 3.9528 |
| Tool Application | Facing; Plunging; Shouldering; Ramping |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Complete Insert Compatibility | WOEJ080412SRMH |
| Lead Angle | 12 |
| Number Of Flutes | 3 |
| End Mill Material | Steel |
| Coolant Through | Yes |
