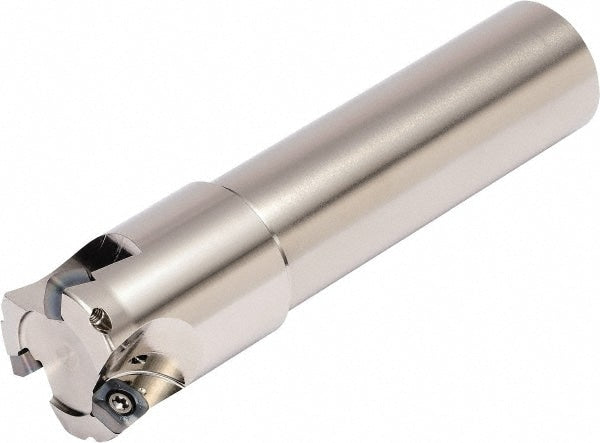

Brand: Kyocera / Part #: THN07810
Item #: 50390699
Brand: Kyocera
Model #: THN07810
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Cutting Diameter (mm) | 15.87 |
| Minimum Cutting Diameter (Decimal Inch) | 0.3100 |
| Maximum Cutting Diameter (Decimal Inch) | 0.6250 |
| Maximum Cutting Diameter (mm) | 15.88 |
| Maximum Cutting Diameter (Inch) | 5/8 |
| Maximum Depth of Cut (mm) | 0.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Toolholder Style | MFH |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Maximum Ramping Angle | 1.70 |
| Compatible Insert Style | LOGU 030310ER-GM |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 6.0000 |
| Maximum RPM | 18800 |
| Head Length (Decimal Inch) | 2.0000 |
| Functional Length (Decimal Inch) | 6.0000 |
| Tool Application | Facing; Plunging; Ramping; Shouldering; Slotting |
| Weldon Flat | No |
| Manufacturers Catalog Number | MFH 0625-S625-03-2T-6 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
