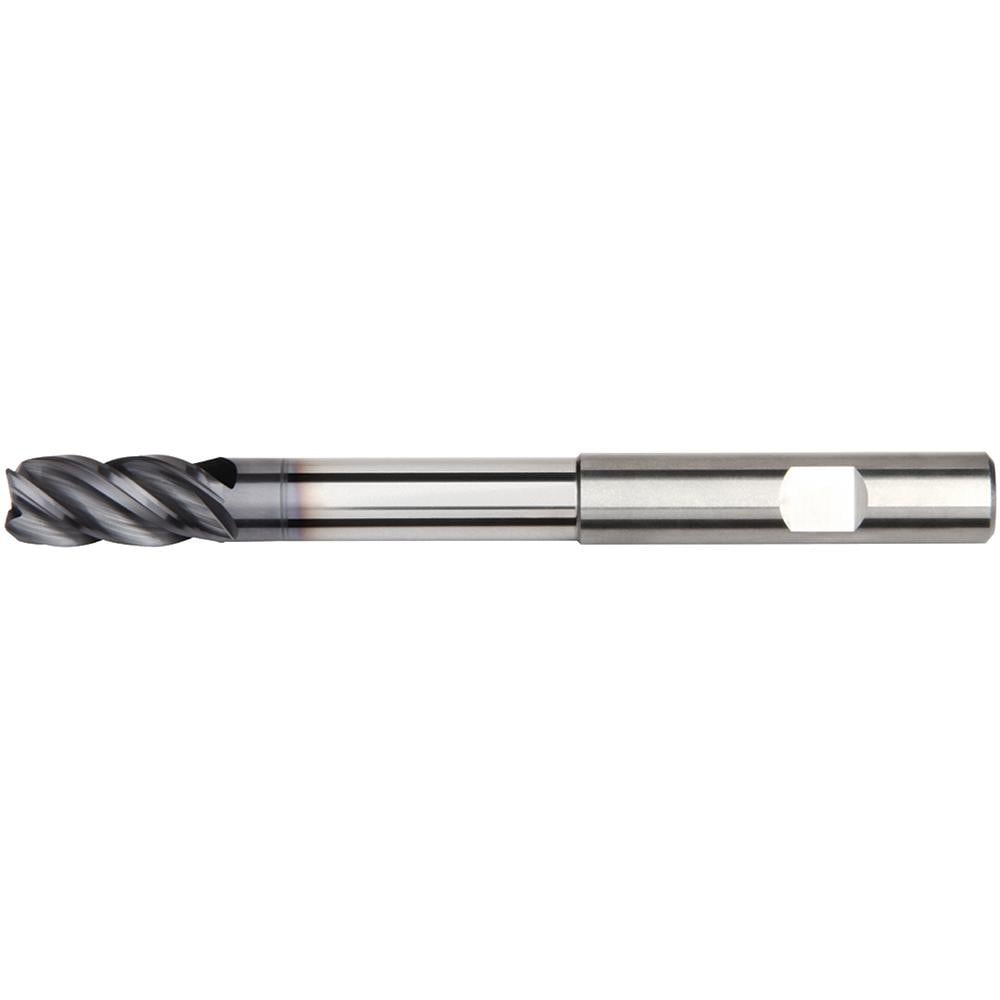

Brand: Widia / Part #: 4067710
Item #: 33977828
Brand: Widia
Model #: 4067710
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Chamfer Width (mm) | 0.50 |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (mm) | 175.00 |
| Length of Cut (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Direction | Right Hand |
| Chipbreaker | No |
| End Type | Single |
| Chamfer Angle | 45 |
| Length Type | Long |
| Flute Type | Helical |
| Extended Reach | Yes |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Neck Diameter (Decimal Inch) | 18.2000 |
| Reach Length (mm) | 98.00 |
| Minimum Helix Angle | 38.00 |
| Maximum Helix Angle | 38.00 |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; H; K |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Series | 47N6 |
