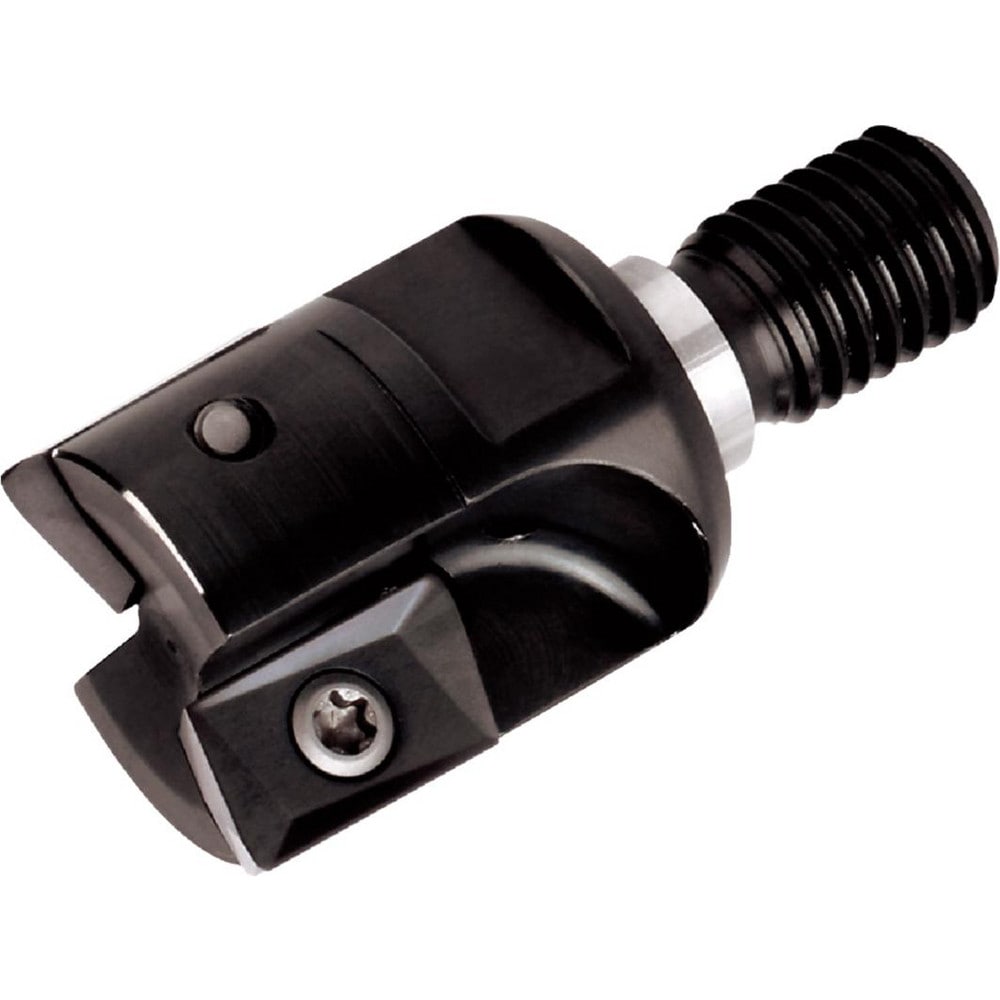

Brand: Widia / Part #: 2003521
Item #: 03949195
Brand: Widia
Model #: 2003521
Product Specifications
| Minimum Cutting Diameter (mm) | 35.00 |
| Maximum Cutting Diameter (mm) | 35.00 |
| Maximum Depth of Cut (mm) | 14.00 |
| Cutter Style | M680 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 28.0000 |
| Maximum Ramping Angle | 0 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 63.0000 |
| Tool Material | Steel |
| Series | M680 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (mm) | 23.000 |
| Head Length (mm) | 40.00 |
| Maximum RPM | 7200.000 |
| Tool Application | Milling; Slotting; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Indexable Square Shoulder End Mill |
| Coolant Hole Diameter (mm) | 2.00 |
| Complete Insert Compatibility | XPHT1604___ |
| Insert Compatibility | XP..1604.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| ISO Number | 12396933200 |
| Manufacturers Catalog Number | 12396933200 |
| Usable Length (mm) | 14.000 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
