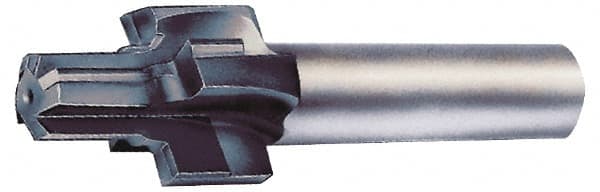

Scientific Cutting Tools - M42x2.0mm Port, 2.3661" Spotface Diam, Reamer Pilot, Carbide Tipped Porting Tool
Item #: 06606982
Brand: Scientific Cutting Tools
Model #: 6149-M42X2.0-ID
Features and Benefits
Carbide-tipped cuts faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
Product Specifications | |
---|---|
Port Standard Designation | ISO 6149-1; SAE J2244-1 |
Pilot Type | Reamer |
Port Thread Size (mm) | M42x2.0 |
Tool Material | Carbide-Tipped |
Minimum Pilot Diameter (mm) | 40.000 |
Minimum Pilot Diameter (Decimal Inch) | 1.5748 |
Maximum Pilot Diameter (Decimal Inch) | 1.7500 |
Spotface Diameter (Decimal Inch) | 2.3661 |
Spotface Diameter (mm) | 60.10 |
Pilot Length (Decimal Inch) | 0.7598 |
Identification Groove | Yes |
Finish/Coating | Bright |
Head Length (Decimal Inch) | 2.1000 |
Overall Length (Decimal Inch) | 4.3500 |
Shank Diameter (Decimal Inch) | 1.0000 |
Shank Length (Decimal Inch) | 2.2500 |
Seal Angle | 15 |
Thread Type | Metric Fine |
Flute Type | Straight |
Number of Flutes | 4 |
