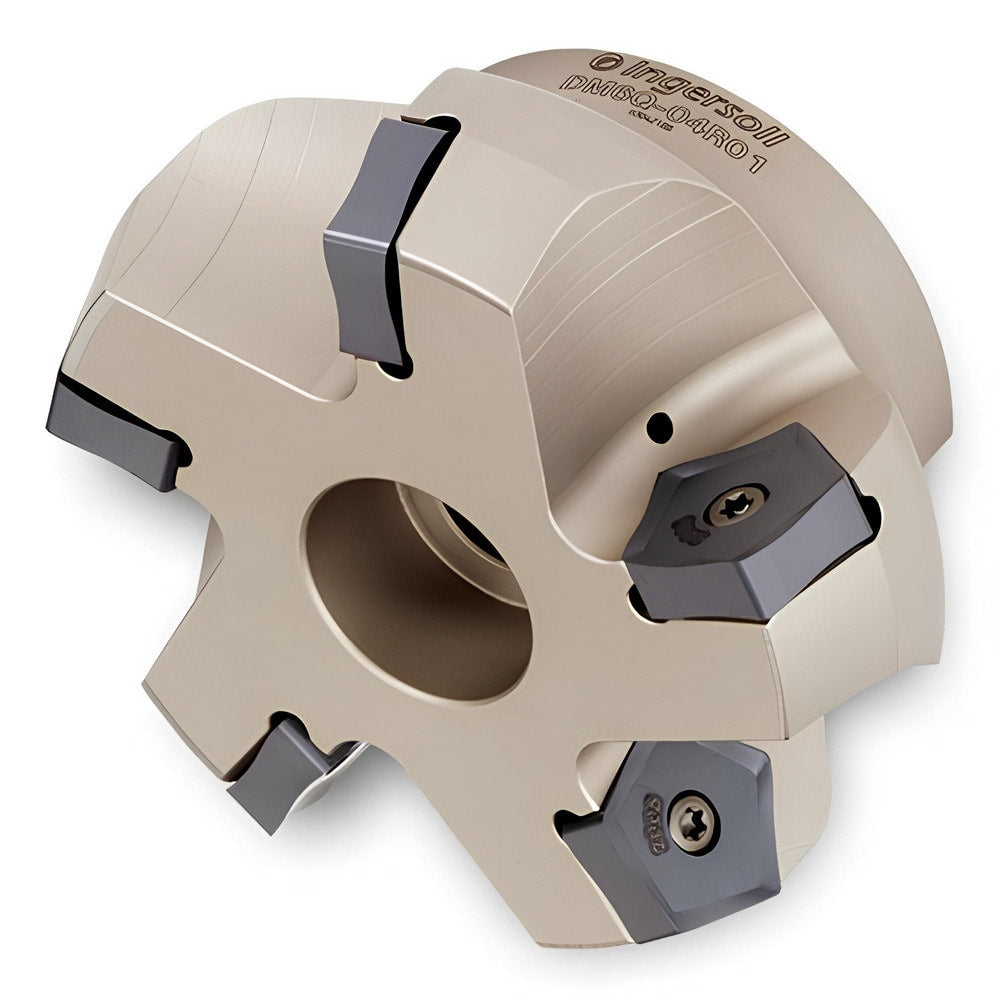

Brand: Ingersoll Cutting Tools / Part #: 3025909

Brand: Ingersoll Cutting Tools / Part #: 3025909


Item #: 96678420
Brand: Ingersoll Cutting Tools
Model #: 3025909

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 4.0000
Minimum Cutting Diameter (Inch) 4
Maximum Cutting Diameter (mm) 112.78
Maximum Cutting Diameter (Decimal Inch) 4.4400
Maximum Depth of Cut (Decimal Inch) 0.4700
Arbor Hole Diameter (Decimal Inch) 1.5000
Arbor Hole Diameter (Inch) 1-1/2
Lead Angle 70.000
Compatible Insert Size Code 1706
Cutter Style DM6Q
Cutting Direction Right Hand
Insert Holding Method Screw
Rake Positive
Series DM6Q
Keyway Width (Decimal Inch) 0.6250
Keyway Width (Inch) 5/8
Overall Height (Inch) 2-3/8
Overall Height (Decimal Inch) 2.3750
Pitch Type Coarse
Tool Application Facing
Tool Performance General Purpose
Primary Workpiece Material Universal
Complete Insert Compatibility PNCU1708; PNCQ1706
Toolholder Material Steel
Manufacturers Catalog Number DM6Q-04R01
Number Of Cutter Inserts 5
Coolant Through Yes
Number Of Flutes 5
$723.69

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
