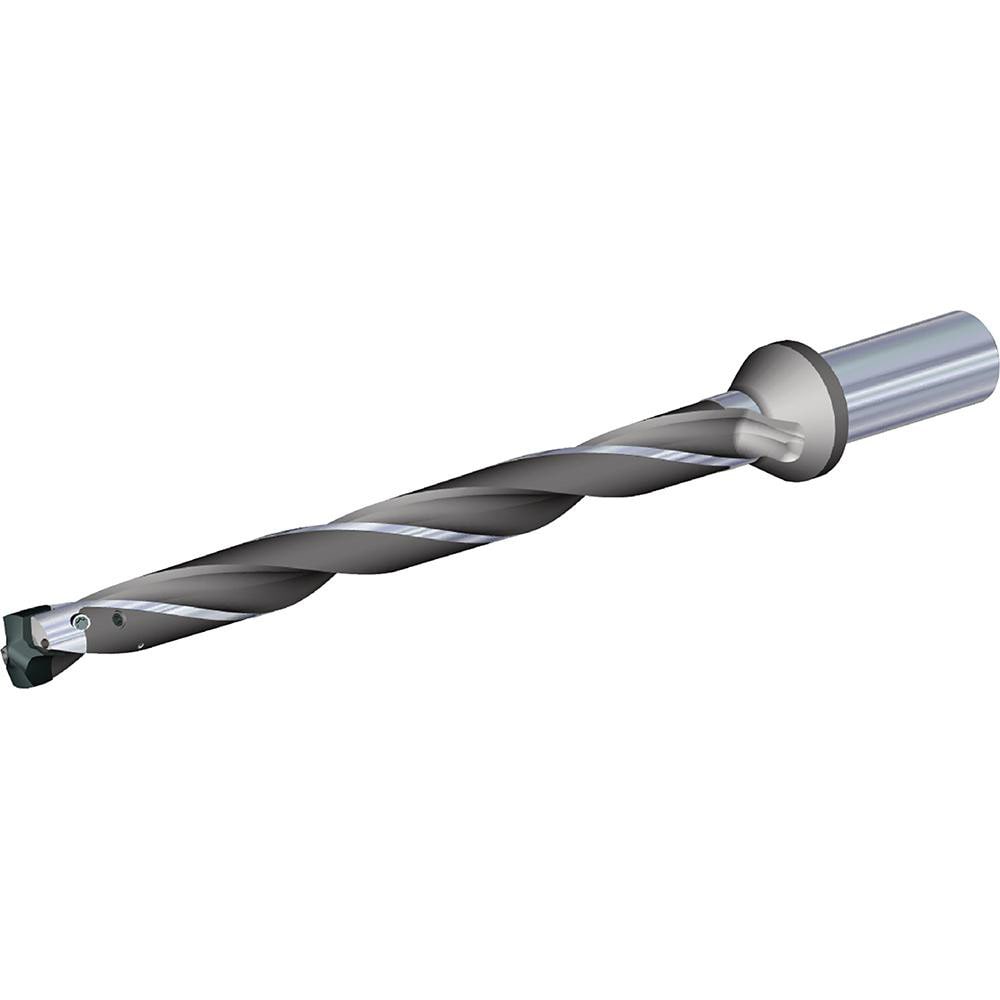

Brand: Widia / Part #: 6680978

Brand: Widia / Part #: 6680978


Item #: 94793288
Brand: Widia
Model #: 6680978

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.6300
Maximum Drill Diameter (Decimal Inch) 0.6692
Drill Depth by Diameter Ratio 12xD
Maximum Drill Depth (Fractional Inch) 8-1/32
Maximum Drill Depth (Decimal Inch) 8.0315
Shank Type Cylindrical
Insert Style TDMX
Shank Diameter (Inch) 3/4
Shank Diameter (Decimal Inch) 0.7500
Insert Seat Size A
Tool Material Steel
Compatible Insert Style TDMX
Compatible Insert Size Code A
Overall Length (Decimal Inch) 11.1811
Series TDMX
Toolholder Style TDMX
Flute Length (Decimal Inch) 8.0315
Body Length (Decimal Inch) 8.7323
Shank Length (Decimal Inch) 1.9685
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Coolant Hole Diameter (Decimal Inch) 0.1378
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$403.04

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
