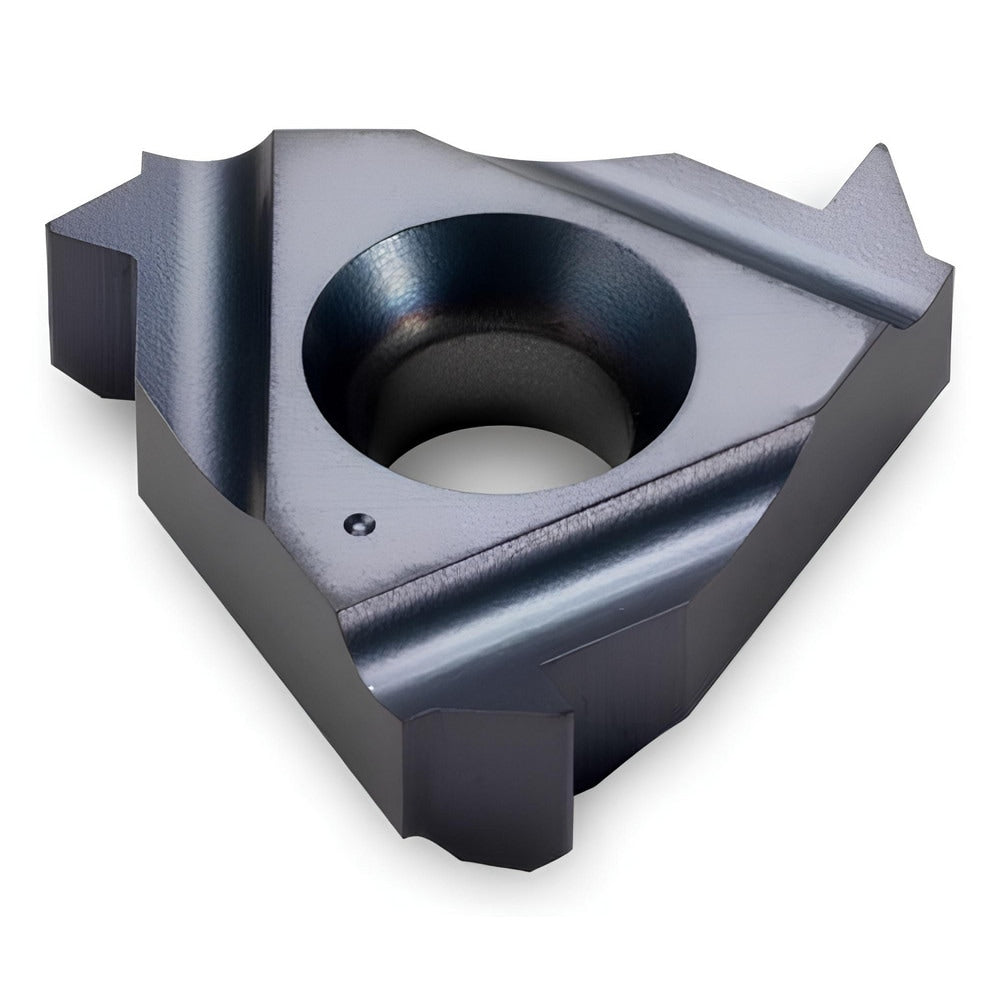

Brand: Ingersoll Cutting Tools / Part #: 5902378
Item #: 06654321
Brand: Ingersoll Cutting Tools
Model #: 5902378
Product Specifications
| Insert Style | 16IR |
| Insert Size Code | 16 |
| Insert Material | Carbide |
| Manufacturer Grade | TT9030 |
| Thread Type | Internal |
| Pitch (mm) | 1.27 |
| Thread Standard | American Buttress |
| Insert Hand | Right Hand |
| Included Angle | 45.00 |
| Chipbreaker | None |
| Series | American Buttress Regular Type |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 3/8 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Super-alloys & Titanium |
| Secondary Workpiece Material Code | S; H; N |
| Ansi Code | 16IR20ABUT |
| Iso Code | 16IR20ABUT |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.055 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.039 |
| Number of Teeth Per Side | 1 |
| Cutting Direction | Right Hand |
| Coating Classification | PVD |
| Thickness (Decimal Inch - 4 Decimals) | 0.1430 |
| Coating/Finish | TiAlN |
