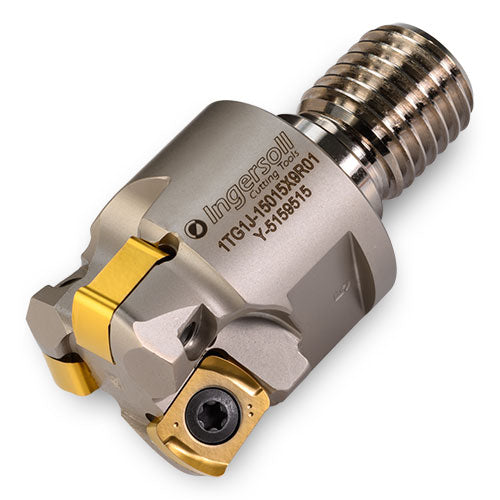

1TG1J042043X8R00
Item #: IC526307357
Brand: Ingersoll
Model #: 6307357
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 42 mm |
| Functional Length (LF) | 43 mm |
| Cutting Diameter (DC) | 26.4 mm |
| Corner Radius (RE) | 3 mm |
| Cutting Diameter Maximum (DCX) | 42 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 3 |
| Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 2 mm |
| Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 0.5 Degrees |
| Hub Diameter (DHUB) | 29 mm |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
