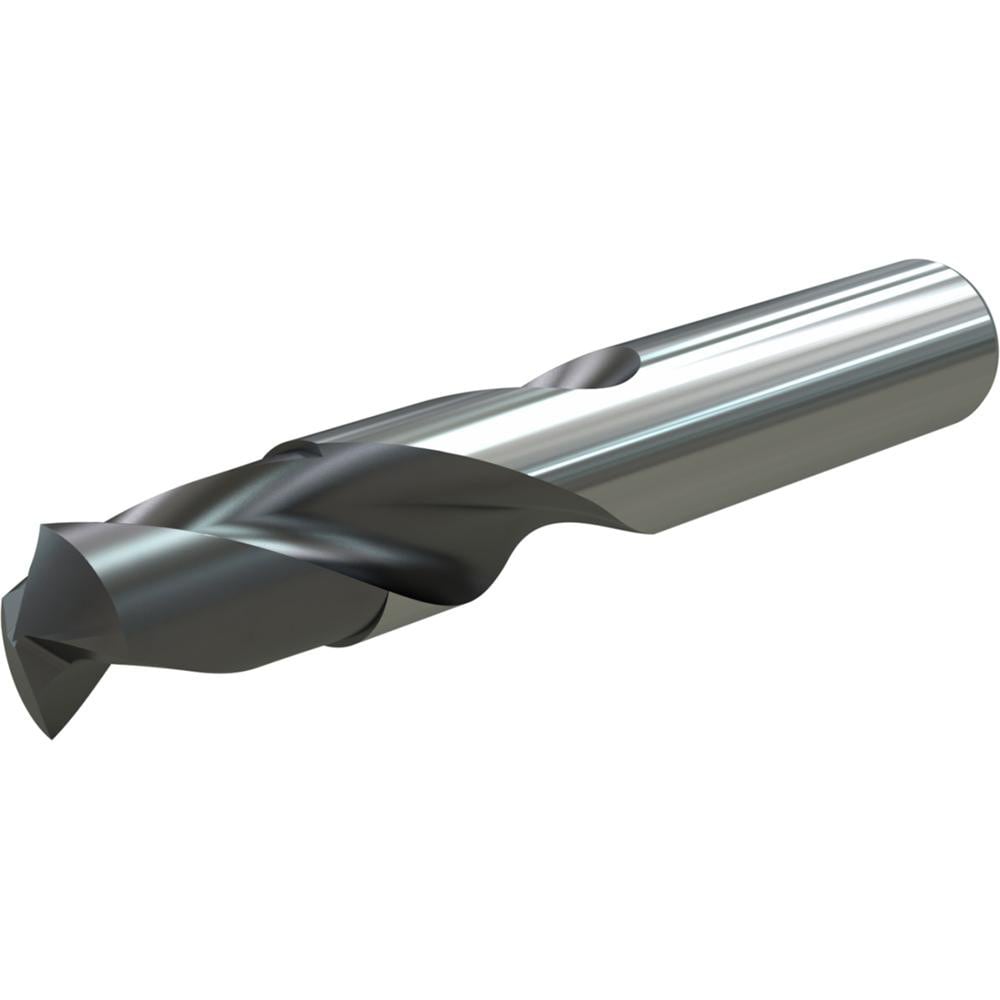

Brand: Widia / Part #: 4143989
Item #: 99706772
Brand: Widia
Model #: 4143989
Product Specifications
| Drill Bit Size (Inch) | 21/64 |
| Drill Bit Size (Decimal Inch) | 0.3281 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular Spiral |
| Flute Type | Helical |
| Point Type | Thinned |
| Coolant Through | No |
| Shank Type | Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Drill Tip Finish/Coating | TiAlN |
| Overall Length (Decimal Inch) | 3.5039 |
| Series | VDS201A |
| Web Thinning | Web-Thinned |
| Drill Length Type | Screw Machine Length |
| Maximum Drilling Depth (Decimal Inch) | 1.3780 |
| Shank Length (Decimal Inch) | 1.5748 |
| Drill Point Length (Decimal Inch) | 0.0555 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | -0.0006/0.0000 in |
| Flute Length (Decimal Inch) | 1.8504 |
| Drill Bit Grade | General Purpose |
| Material Grade | Carbide |
