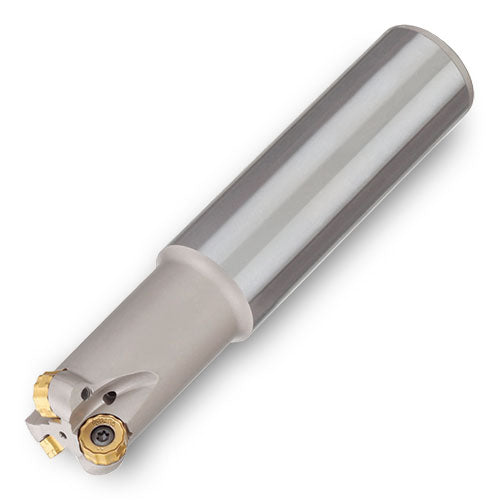

1DE1H-12020S9R01
Item #: IC523031501
Brand: Ingersoll
Model #: 3031501
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1-1/4″ |
| Application | | Facing | Helical Interpolation | Rampdown | Slotting | |
| Cutting Diameter (DC) | 0.778″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
| Cutting Diameter Maximum (DCX) | 1-1/4″ |
| Usable Length (LU) | 1.97″ |
| Cutting Item Count (CICT) | 3 |
| Corner Radius (RE) | 0.236″ |
| Depth of Cut Maximum (APMX) | 0.236″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 9″ |
| Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 1.3 Degrees |
| Protruding Length (LPR) | 2″ |
