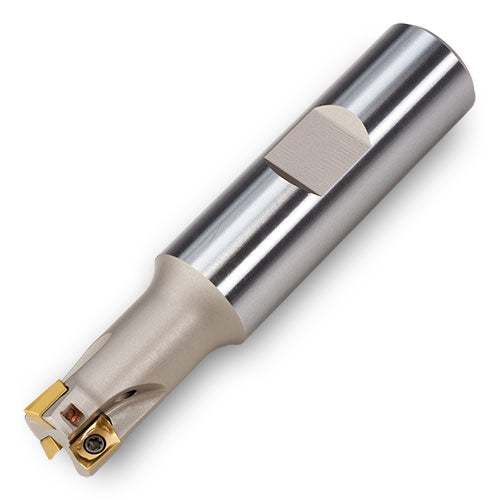

12J1D-0701684R02
Item #: IC523018967
Brand: Ingersoll
Model #: 3018967
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 0.72″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Cutting Diameter (DC) | 0.72″ |
| Usable Length (LU) | 1.65″ |
| Cutting Item Count (CICT) | 4 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.22″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 3-3/4″ |
| Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 2.6 Degrees |
| Protruding Length (LPR) | 1-3/4″ |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
