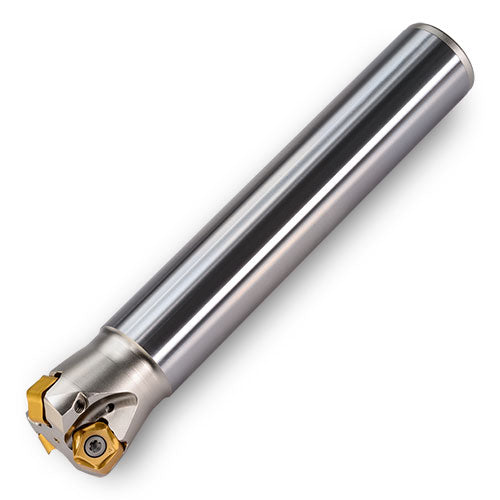

1DP1P-15020S5R01
Item #: IC522926046
Brand: Ingersoll
Model #: 2926046
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Cutting Diameter (DC) | 0.85″ |
| Usable Length (LU) | 1.78″ |
| Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Corner Radius (RE) | 0.21″ |
| Cutting Item Count (CICT) | 3 |
| Tool Cutting Edge Angle (KAPR) | 25 Degrees |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 8″ |
| Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 2.2 Degrees |
| Protruding Length (LPR) | 5.34″ |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Slotting | |
