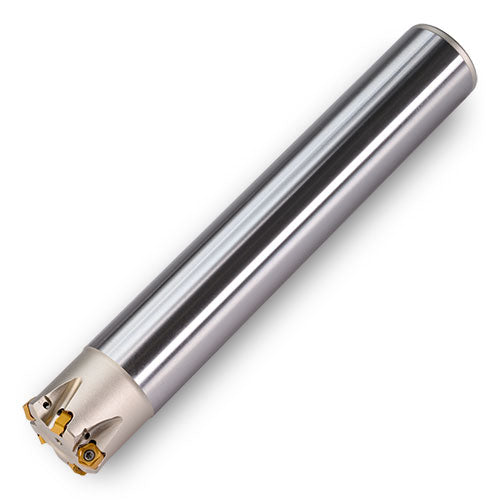

1DP1C-15020S5R01
Item #: IC522925887
Brand: Ingersoll
Model #: 2925887
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Cutting Diameter (DC) | 1.177″ |
| Usable Length (LU) | 1.88″ |
| Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Corner Radius (RE) | 0.1″ |
| Cutting Item Count (CICT) | 6 |
| Tool Cutting Edge Angle (KAPR) | 26 Degrees |
| Depth of Cut Maximum (APMX) | 0.059″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 8″ |
| Body Material | Steel |
| Ramping Angle Maximum (RMPX) | 0.8 Degrees |
| Protruding Length (LPR) | 5.34″ |
| Application | | Facing | Helical Interpolation | Rampdown | Slotting | |
