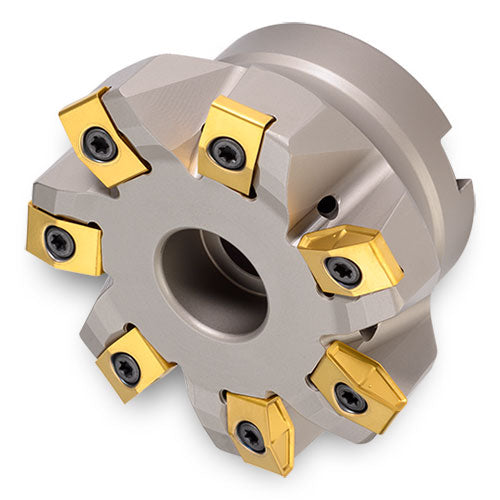

8G5A-03R01
Item #: IC522924002
Brand: Ingersoll
Model #: 2924002
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 3″ |
| Overall Length (OAL) | 1-3/4″ |
| Cutting Diameter (DC) | 2.399″ |
| Ramping Angle Maximum (RMPX) | 1.6 Degrees |
| Cutting Diameter Maximum (DCX) | 3″ |
| Body Material | Steel |
| Cutting Item Count (CICT) | 7 |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 0.058″ |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Tool Cutting Edge Angle (KAPR) | 12.7 Degrees |
