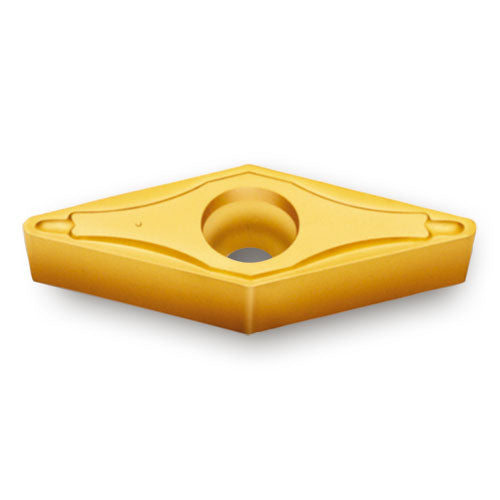

VBMT331FG TT3010
Item #: IC066342039
Brand: Ingersoll
Model #: 6342039
| Product Specifications | |
|---|---|
| Corner Radius (RE) | 0.016″ |
| Min. Turning Feed (ft(min)) | 0.003″ |
| Cutting Edge Length (L) | 0.654″ |
| Max. Turning Feed (ft(max)) | 0.008″ |
| Insert Thickness (S) | 0.187″ |
| Clearance Angle Major (AN) | 5 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Number of Cutting Edges | 2 |
| Insert Included Angle (EPSR) | 35 Degrees |
| Cutting Direction (HAND) | Neutral |
| Fixing Hole Diameter (D1) | 0.173″ |
| Measurement Type | Inch |
| Min D.O.C. | 0.02″ |
| Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.059″ |
