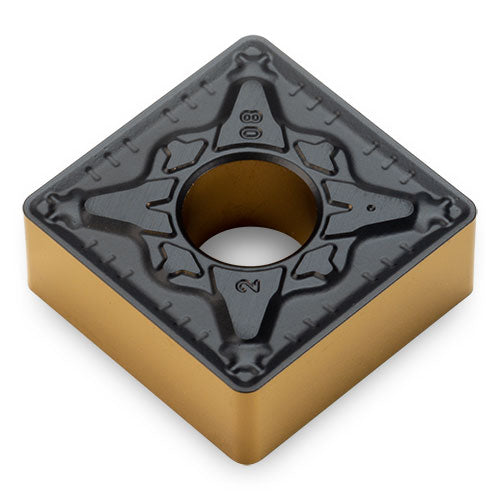

SNMG432MGP TT8115B
Item #: IC066306973
Brand: Ingersoll
Model #: 6306973
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Min. Turning Feed (ft(min)) | 0.006″ |
| Corner Radius (RE) | 0.031″ |
| Max. Turning Feed (ft(max)) | 0.02″ |
| Insert Size | 120408 |
| Number of Cutting Edges | 8 |
| Insert Thickness (S) | 0.187″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees |
| Body Material | Carbide |
| Min D.O.C. | 0.02″ |
| Cutting Edge Effective Length (LE) | 0.469″ |
| Depth of Cut Maximum (APMX) | 0.157″ |
