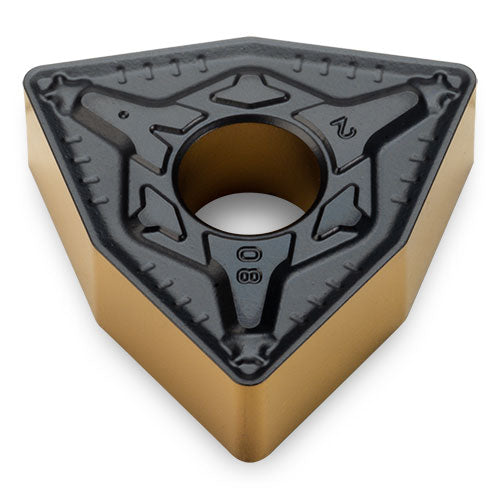

WNMG433MGP TT8125B
Item #: IC066198053
Brand: Ingersoll
Model #: 6198053
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Min D.O.C. | 0.024″ |
| Corner Radius (RE) | 0.047″ |
| Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Size | 080412 |
| Min. Turning Feed (ft(min)) | 0.007″ |
| Cutting Edge Length (L) | 0.343″ |
| Max. Turning Feed (ft(max)) | 0.022″ |
| Insert Thickness (S) | 0.187″ |
| Number of Cutting Edges | 6 |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees |
| Body Material | Carbide |
