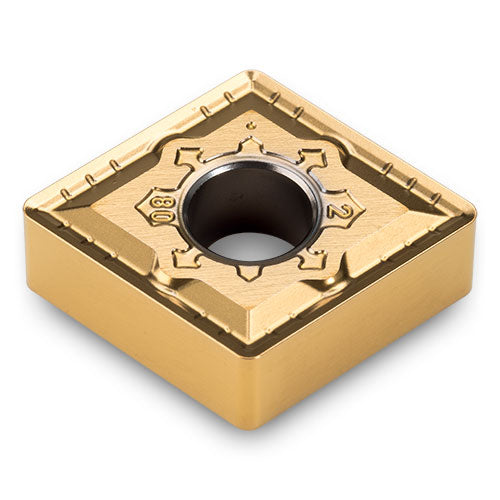

CNMG432MGS TT3020
Item #: IC066184976
Brand: Ingersoll
Model #: 6184976
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | Hi Temp Alloys | |
| Grade | TT3020 |
| Insert Style | CNMG |
| Min D.O.C. | 0.04″ |
| Corner Radius (RE) | 0.031″ |
| Depth of Cut Maximum (APMX) | 0.16″ |
| Insert Size | 432 |
| Min. Turning Feed (ft(min)) | 0.006″ |
| Cutting Edge Length (L) | 0.508″ |
| Max. Turning Feed (ft(max)) | 0.016″ |
| Insert Thickness (S) | 0.187″ |
| Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Cutting Direction (HAND) | Neutral |
| Insert Included Angle (EPSR) | 80 Degrees |
| Measurement Type | Inch |
| Coating | AlTiN/TiN |
| Body Material | Carbide |
