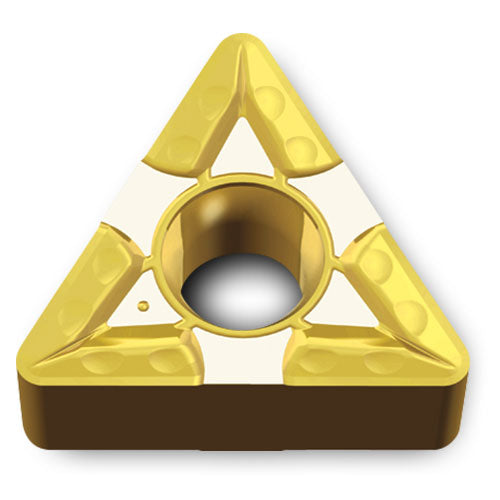

TNMG2.533MT TT5100
Item #: IC066106434
Brand: Ingersoll
Model #: 6106434
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Min D.O.C. | 0.047″ |
| Corner Radius (RE) | 0.047″ |
| Depth of Cut Maximum (APMX) | 0.138″ |
| Insert Size | 2.533 |
| Min. Turning Feed (ft(min)) | 0.008″ |
| Cutting Edge Length (L) | 0.379″ |
| Max. Turning Feed (ft(max)) | 0.022″ |
| Insert Thickness (S) | 0.187″ |
| Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 0.313″ |
| Series/List # | CNMG 2.533-MT |
| Coating | TiCN+Al2O3 |
| Body Material | Carbide |
| Grade | TT5100 |
