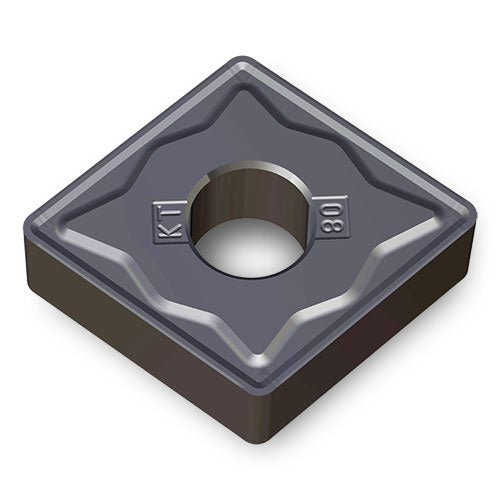

CNMG434KT TT7005
Item #: IC066105469
Brand: Ingersoll
Model #: 6105469
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Grade | TT7005 |
| Corner Radius (RE) | 0.063″ |
| Min D.O.C. | 0.03″ |
| Insert Size | 434 |
| Depth of Cut Maximum (APMX) | 0.276″ |
| Cutting Edge Length (L) | 0.508″ |
| Min. Turning Feed (ft(min)) | 0.011″ |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.033″ |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Cutting Direction (HAND) | Neutral |
| Insert Included Angle (EPSR) | 80 Degrees |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
