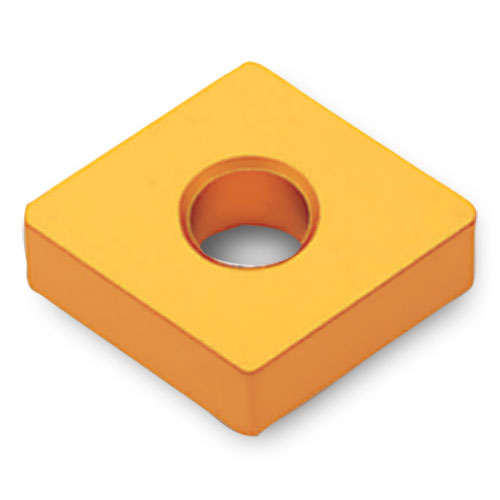

CNMA543 TT7005
Item #: IC065523778
Brand: Ingersoll
Model #: 5523778
| Product Specifications | |
|---|---|
| Insert Style | CNMA |
| Min D.O.C. | 0.059″ |
| Corner Radius (RE) | 0.047″ |
| Depth of Cut Maximum (APMX) | 0.315″ |
| Insert Size | 543 |
| Min. Turning Feed (ft(min)) | 0.006″ |
| Cutting Edge Length (L) | 0.635″ |
| Max. Turning Feed (ft(max)) | 0.028″ |
| Insert Thickness (S) | 1/4″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 5/8″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees |
| Series/List # | CNMG 543-N/A |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
| Grade | TT7005 |
