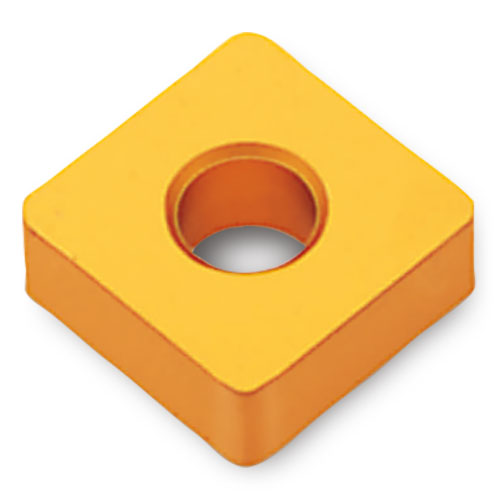

SNMA432 TT7005
Item #: IC065523765
Brand: Ingersoll
Model #: 5523765
| Product Specifications | |
|---|---|
| Insert Style | SNMA |
| Depth of Cut Maximum (APMX) | 0.236″ |
| Corner Radius (RE) | 0.031″ |
| Min. Turning Feed (ft(min)) | 0.006″ |
| Insert Size | 432 |
| Max. Turning Feed (ft(max)) | 0.028″ |
| Insert Thickness (S) | 0.187″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees |
| Series/List # | SNMA 432-N/A |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
| Grade | TT7005 |
| Cutting Edge Effective Length (LE) | 0.469″ |
| Min D.O.C. | 0.039″ |
