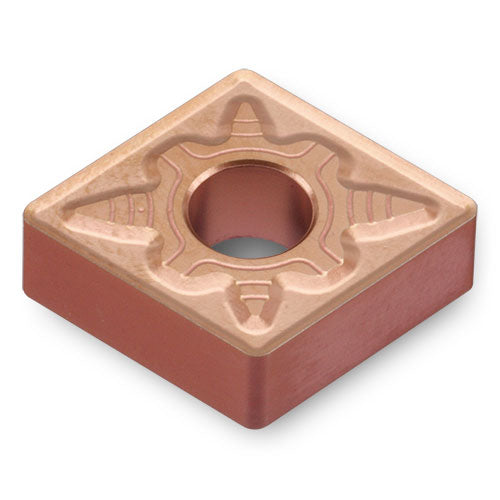

CNMG434EM TT9235
Item #: IC065522409
Brand: Ingersoll
Model #: 5522409
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Grade | TT9235 |
| Corner Radius (RE) | 0.063″ |
| Min D.O.C. | 0.02″ |
| Insert Size | 434 |
| Depth of Cut Maximum (APMX) | 0.2″ |
| Cutting Edge Length (L) | 0.508″ |
| Min. Turning Feed (ft(min)) | 0.007″ |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.024″ |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Cutting Direction (HAND) | Neutral |
| Insert Included Angle (EPSR) | 80 Degrees |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
