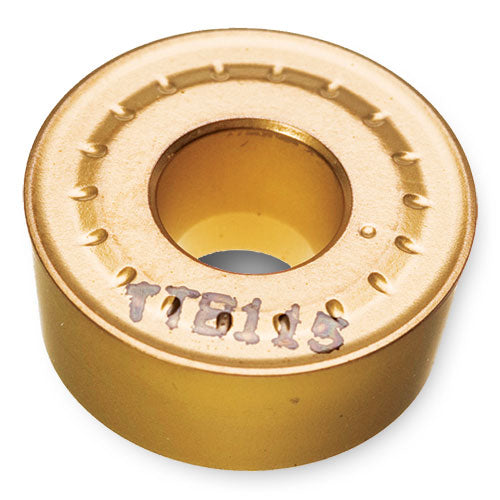

RCMX120400RA TT8115
Item #: IC065522399
Brand: Ingersoll
Model #: 5522399
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Insert Size | 120400 |
| Min. Turning Feed (ft(min)) | 0.01″ |
| Insert Thickness (S) | 0.187″ |
| Max. Turning Feed (ft(max)) | 0.024″ |
| Inscribed Circle Diameter (IC) | 0.472″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Coating | TiCN+Al2O3+TiN |
| Number of Cutting Edges | 2 |
| Grade | TT8115 |
| Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.165″ |
| Body Material | Carbide |
| Min D.O.C. | 0.079″ |
