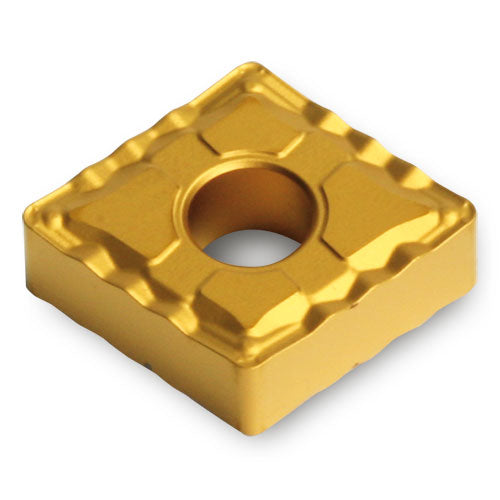

CNMG433FC TT9235
Item #: IC065520612
Brand: Ingersoll
Model #: 5520612
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Min D.O.C. | 0.031″ |
| Corner Radius (RE) | 0.047″ |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 433 |
| Min. Turning Feed (ft(min)) | 0.003″ |
| Cutting Edge Length (L) | 0.508″ |
| Max. Turning Feed (ft(max)) | 0.016″ |
| Insert Thickness (S) | 0.187″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees |
| Series/List # | CNMG 433-FC |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
| Grade | TT9235 |
