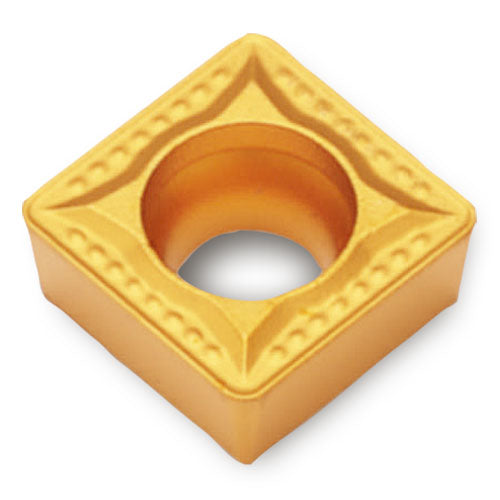

SCMT32.52MT TT7100
Item #: IC065517813
Brand: Ingersoll
Model #: 5517813
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Depth of Cut Maximum (APMX) | 0.138″ |
| Corner Radius (RE) | 0.031″ |
| Min. Turning Feed (ft(min)) | 0.005″ |
| Insert Size | 32.52 |
| Max. Turning Feed (ft(max)) | 0.012″ |
| Insert Thickness (S) | 0.156″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Cutting Direction (HAND) | Neutral |
| Insert Included Angle (EPSR) | 90 Degrees |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Series/List # | TPMR 32.52-MT |
| Grade | TT7100 |
| Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ |
| Cutting Edge Effective Length (LE) | 0.344″ |
| Min D.O.C. | 0.039″ |
