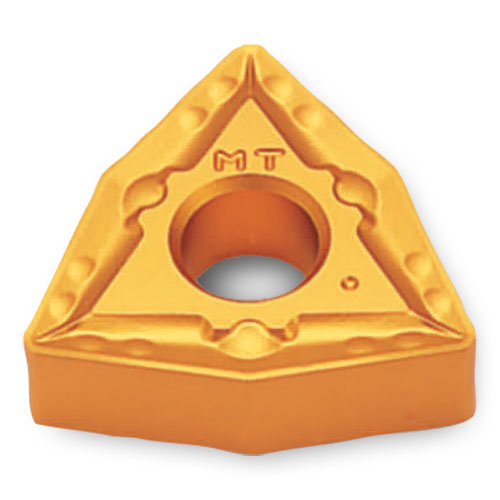

WNMG433MT TT8020
Item #: IC065515621
Brand: Ingersoll
Model #: 5515621
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Min D.O.C. | 0.059″ |
| Corner Radius (RE) | 0.047″ |
| Depth of Cut Maximum (APMX) | 0.157″ |
| Insert Size | 433 |
| Min. Turning Feed (ft(min)) | 0.01″ |
| Cutting Edge Length (L) | 0.323″ |
| Max. Turning Feed (ft(max)) | 0.022″ |
| Insert Thickness (S) | 0.187″ |
| Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Series/List # | SNMG 433-MT |
| Coating | TiCN |
| Body Material | Carbide |
| Grade | TT8020 |
