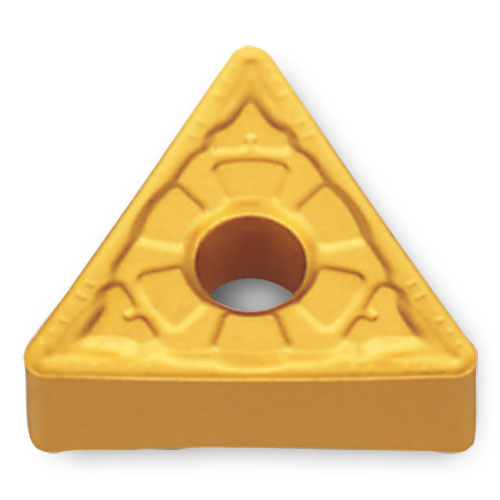

TNMG221FG TT5100
Item #: IC065514956
Brand: Ingersoll
Model #: 5514956
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Min D.O.C. | 0.02″ |
| Corner Radius (RE) | 0.016″ |
| Depth of Cut Maximum (APMX) | 0.059″ |
| Insert Size | 221 |
| Min. Turning Feed (ft(min)) | 0.003″ |
| Cutting Edge Length (L) | 0.379″ |
| Max. Turning Feed (ft(max)) | 0.008″ |
| Insert Thickness (S) | 1/8″ |
| Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Series/List # | DNMG 221-FG |
| Coating | TiCN+Al2O3 |
| Body Material | Carbide |
| Grade | TT5100 |
